Product Details

Description

Features:

• Wide gain control range
• Linear gain slope
• Wideband operation (50MHz to 300MHz)
• Very small package (16 Pin SSOP)
• Low voltage operation
• Two input ports
• Power save function included

Application

CDMA cellular/PCS phone

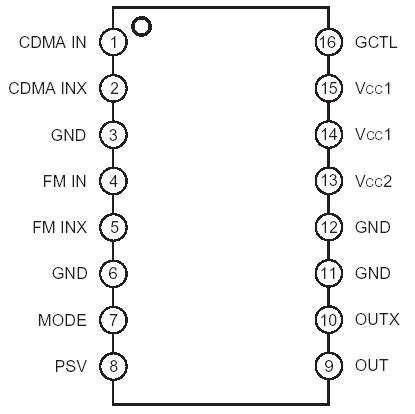

Pinout

Connection Diagram

Specifications

• Supply voltage V_CC . . . . . . . . . . . . . . .. . . . . . . . . . . . . 6 V
•Operating temperature T_opr  . . . . . . . . . .55 to +125 °C
• Storage temperature T_stg . . . . . . . . . . .65 to +150 °C
• Allowable Power dissipation P_D  . . . . . . . . . . . .. .330 mW
• Supply voltage range . . . . . . . . . . . . . . . . . . 0.3 to 6 V
• Logic input voltage  . . . . . . . . . . . . . 0.3 to V_CC + 0.3 V
• Signal input voltage  . . . . . . . . . . . . 0.3 to V_CC + 0.3 V
• Differential signal input voltage . . . . . . . . . . .. 0 to 2.5 V

Description

CXA3201AN is an RX gain control amplifier suitable for CDMA cellular/PCS phone.
