CXA3106AQ

Features: • Supply voltage: 5V ± 10% single power supply• Package: 48-pin QFP• Power consumption: 350mW• Sync input frequency: 10 to 100kHz• Clock output signal frequency: 10 to 160MHz• Clock delay: 1/16 to 20/16 CLK• Sync delay: 1/16 to 20/16 CLK• I...

product image

CXA3106AQ Picture
See larger image
SeekIC No. : 004318324 Detail

CXA3106AQ: Features: • Supply voltage: 5V ± 10% single power supply• Package: 48-pin QFP• Power consumption: 350mW• Sync input frequency: 10 to 100kHz• Clock output signal frequen...

CXA3106AQ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA3106AQ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supply voltage: 5V ± 10% single power supply
• Package: 48-pin QFP
• Power consumption: 350mW
• Sync input frequency: 10 to 100kHz
• Clock output signal frequency: 10 to 160MHz
• Clock delay: 1/16 to 20/16 CLK
• Sync delay: 1/16 to 20/16 CLK
• I/O level: TTL, PECL (complementary)
• Low clock jitter
• 1/2 clock output


Application

• CRT displays
• LCD projectors
• LCD monitors
• Multi-media


Pinout

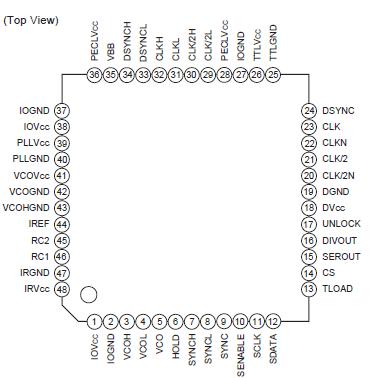

Connection Diagram


Specifications

Item
Maximum ratings
Unit
Supply voltage IOVCC, DVCC, TTLVCC, PECLVCC, PLLVCC,
VCOVCC, IRVCC,
IOGND, DGND, TTLGND, VCOHGND, PLLGND,
VCOGND, IRGND
0.5 to +7.0
V
AVCCAD3, DVCCAD3
0.5 to +0.5
V
Input voltage VCOH, VCOL, SYNCH, SYNCL, VCO, HOLD,
SYNC, SENABLE, SCLK, SDATA, TLOAD, CS
RC2

IOGND 0.5 to IOVCC + 0.5
IRGND 0.5 to IRVCC + 0.5
V
SDA, SCL
GND 0.5 to 5.5
V
Output current

SEROUT, DIVOUT, UNLOCK, CLK/2N,CLK/2,
CLKN, CLK, DSYNC, CLK/2L, CLK/2H, CLKL,
CLKH, DSYNCH, DSYNCL, VBB
IREF, RC1

30 to +30
2 to +2
mA
mA
Storage
temperature		 Tstg
65 to +150
°C
Operating ambient temperature Ta
25 to +75
°C
Allowable power
dissipation		 PD
750
mW



Description

The CXA3106AQ is a PLL IC for LCD monitors/projectors with built-in phase detector, charge pump,VCO and counter.

The various internal settings are performed by serial data via a 3-line bus.

Applicable LCD monitor/projector resolution CXA3106AQ are NTSC, PAL, VGA, SVGA, XGA, and SXGA etc.
