CXA3095N

Features:

• Low noise figure
• Superior cross modulation
• Low spurious
• Stable oscillating characteristics
• Local oscillator output for PLL
• Double tune filter connectable to MIX output
• Low thermal resistance package


Application

• TV tuner
• CATV tuner
• VCR tuner

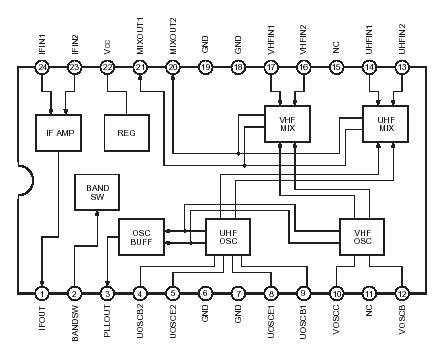

Pinout




Specifications

• Supply voltage V_CC . . . . . . . . . . . . . . . . . . . . . . .10.5 V
• Storage temperature T_stg . . . . . . . . ..65 to +150 °C
• Allowable power dissipation P_D . . . . . . . . . . .1200 mW


Description

The CXA3095N is a single chip TV tuner IC which performs as an oscillator, mixer for VHF-CATV and UHF bands. An IF amplifier is also provided.

This IC adopts a 24-pin SSOP package (0.8mm pitch) in response to the trend toward miniaturizing the tuner and automatic IC mounting.

This IC CXA3095N is the inverted product of the CXA3025N pin assignment.
