CXA3050M

Features: • Minimal adjustment of external components• For use on VHF and UHF TV Frequencies• Video RF carrier frequency programmable in 125kHz steps• Accepts NICAM 6.552MHz QPSK input signal• Accepts FM Stereo input signal• I2C control of: a. Video RF Carrier F...

product image

CXA3050M Picture
See larger image
SeekIC No. : 004318314 Detail

CXA3050M: Features: • Minimal adjustment of external components• For use on VHF and UHF TV Frequencies• Video RF carrier frequency programmable in 125kHz steps• Accepts NICAM 6.552MHz ...

CXA3050M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA3050M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Minimal adjustment of external components
• For use on VHF and UHF TV Frequencies
• Video RF carrier frequency programmable in 125kHz steps
• Accepts NICAM 6.552MHz QPSK input signal
• Accepts FM Stereo input signal
• I2C control of:
  a. Video RF Carrier Frequency
  b. Sound Carrier Frequency
  c. Modulation Depth (±2% Typ.)
  d. FM Deviation (±8% Typ.)
  e. P/S ratio (±1dB Typ.)
  f. Nicam output enable to sleep
  g. Video RF carrier enable to sleep
• On chip Regulator 3.1V


Application

• PAL and NTSC System VCR
• Satellite Receiver
• Set Top Box
• SMATV


Pinout

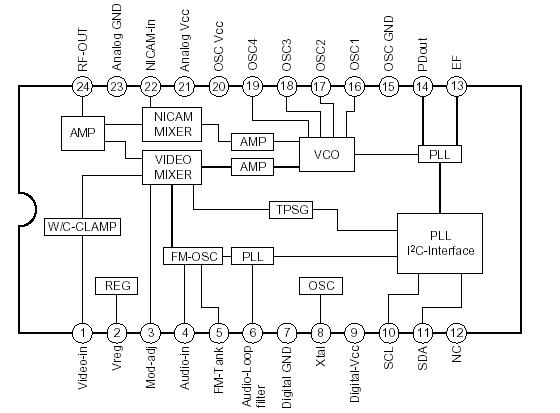

Connection Diagram


Specifications

• Supply voltage VCC . . . . . . . . . . . . . . . . . 5.0 ± 0.5 V
• Supply for VCO Varactor. . . . . . . . .  . . . . . 30 ± 0.5 V
• Operating Temperature . . . . . . .. . . .10 to +80 °C


Description

Fully synthesized I2C CXA3050M controlled UHF/VHF TV RF Modulator compatible with PAL and NTSC video formats.
