CXA1977R

Features: • Maximum operating speed : 20MSPS (Min.)• Resolution : 10-bit• Low power dissipation : 160mW (Typ.)• Wide-band analog input : 10MHz• Low input capacitance : 50pF (Typ.)• Built-in digital correction (Compensation within ±16LSB)• TTL input• ...

product image

CXA1977R Picture
See larger image
SeekIC No. : 004318188 Detail

CXA1977R: Features: • Maximum operating speed : 20MSPS (Min.)• Resolution : 10-bit• Low power dissipation : 160mW (Typ.)• Wide-band analog input : 10MHz• Low input capacitance : ...

CXA1977R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1977R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Maximum operating speed : 20MSPS (Min.)
• Resolution : 10-bit
• Low power dissipation : 160mW (Typ.)
• Wide-band analog input : 10MHz
• Low input capacitance : 50pF (Typ.)
• Built-in digital correction (Compensation within ±16LSB)
• TTL input
• TTL output
• Output code : binary/2'S complement/1'S complement




Application

High resolution video signal processing


Pinout

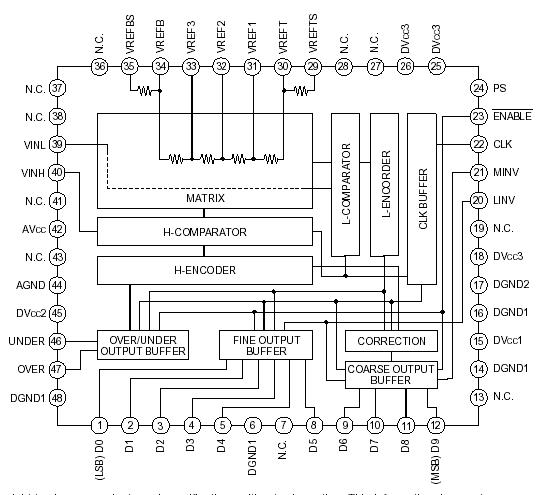

Connection Diagram


Specifications

• Supply voltage DVcc1  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .  . . . . . .0 to +6 V
DVcc2  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .0 to +6 V
DVcc3  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to +6 V
AVcc  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 to +6 V
• Analog input voltage VINH  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AGND to AVcc + 0.3 V
VINL  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .AGND to AVcc + 0.3 V
• Reference voltage VREFT  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .AGND to AVcc + 0.3 V
VREFB  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .AGND to AVcc + 0.3 V
• Digital input voltage CLK DGND1 . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . 0.5 to DVcc1 V
MINV DGND1  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to DVcc1 V
LINV DGND1  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to DVcc1 V
PS DGND1  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 to DVcc1 V
ENABLE DGND1  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to DVcc1 V
• Digital output voltage Vo DGND1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to +3.6 V
(Vo: The voltage is applied to the output pin for high impedance output.)
• Storage temperature Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65 to 150 °C
• Allowable power dissipation PD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .950 mW


Description

The CXA1977R is a 10-bit 20MSPS 2-step parallel type A/D converter for video signal processing.

This A/D converter CXA1977R operates on +5V power supplies. The analog signal can be converted to the digital signal by using this IC in conjunction with the Sample-and-hold IC.
