CXA1946BR

Features: • Loudness• Volume control (0dB to 87dB in 1dB step, dB)• Balance• Tone control (15 steps, 2 bands, 16dB to +16dB)• Fader (2dB-step to 20dB, 25dB, 35dB, 45dB, 60dB, °dB)• Input selector (4 channels)• Gain can be set for each input channel (common...

product image

CXA1946BR Picture
See larger image
SeekIC No. : 004318183 Detail

CXA1946BR: Features: • Loudness• Volume control (0dB to 87dB in 1dB step, dB)• Balance• Tone control (15 steps, 2 bands, 16dB to +16dB)• Fader (2dB-step to 20dB, 25dB, 35dB, 45dB,...

CXA1946BR Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1946BR
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Loudness
• Volume control (0dB to 87dB in 1dB step, dB)
• Balance
• Tone control (15 steps, 2 bands, 16dB to +16dB)
• Fader (2dB-step to 20dB, 25dB, 35dB, 45dB, 60dB, °dB)
• Input selector (4 channels)
• Gain can be set for each input channel (common for channels 3 and 4)
• Serial data control (DATA, CLK, CE)
• Single 8V power supply
• Zero-cross detection circuit (with timer)
• Power-off mute
• Volume control and tone control input/output pins are separate.
• Portable phone noise countermeasure


Pinout

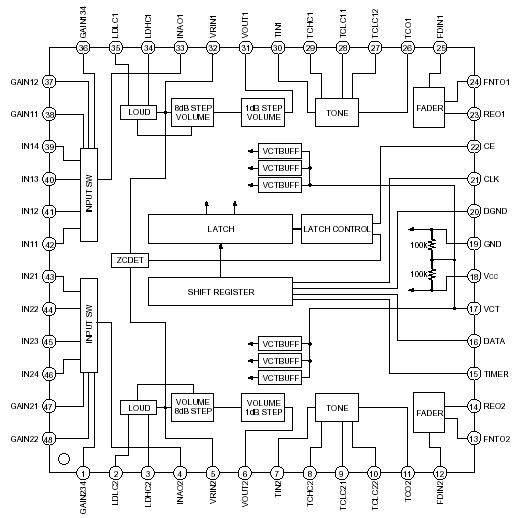

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 V
• Operating temperature Topr  . . . . . . . . . . . . . . . 40 to +85 °C
• Storage temperature Tstg  . . . . . . . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . 350 mW (Ta = 85°C)


Description

The CXA1946BQ/BR is a serial control electronic volume IC designed for use in audio systems.
