CXA1940N

Features: • Operate on single +5V power supply.• Low power consumption. Read : 95mW Write (IW=20mA) : 130mW+IW ×5 Power save : 5.5mW• Write current can be varied through an external resistor. Built-in stabilizing circuit provides stable current during voltage and temperature drif...

product image

CXA1940N Picture
See larger image
SeekIC No. : 004318179 Detail

CXA1940N: Features: • Operate on single +5V power supply.• Low power consumption. Read : 95mW Write (IW=20mA) : 130mW+IW ×5 Power save : 5.5mW• Write current can be varied through an externa...

CXA1940N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1940N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operate on single +5V power supply.
• Low power consumption. Read : 95mW Write (IW=20mA) : 130mW+IW ×5 Power save : 5.5mW
• Write current can be varied through an external resistor. Built-in stabilizing circuit provides stable current during voltage and temperature drift.
• Drives up to 4 heads.
• Designed for two-terminal thin-film or MIG heads.
• Built-in power save function.
• Read amplifier emitter follower output featuring 290 times gain (Typ.).
• Built-in Write unsafe detection circuit.
• Built-in supply voltage monitor circuit prohibits incorrect Write during power on or abnormal voltage.
• Built-in IC protection circuit for short of head and GND.
• Differential input capacitance for Read : 14pF (Typ.).
• Write data input minimum pulse width : 10ns
• Read data output become high impedance in write mode to improve read data offset when switching from write to read mode.
• Unselected head DC voltage is GND potential.
• Self switching damping resistance (RD=310½)


Pinout

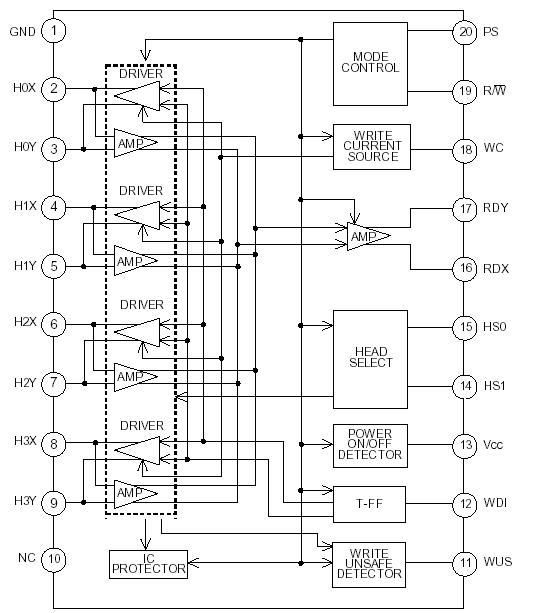

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
•Write current IW . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 mAo-p
• Operating temperature Topr  . . . . . . . . . . . 20 to +75 °C
• Storage temperature Tstg  . . . . . . . . . . . . 55 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . . . . . 375 mW


Description

The CXA1940N is a Read/Write Amplifier for the thin film head of hard disk drives and designed to handle up to 4-channel heads.
