Product Details

Description



Features:

• Minimal adjustment of external components
• For use on VHF and UHF TV Frequencies
• Video RF carrier frequency programmable in 125 kHz steps
• ATT Driver
• I2C control of:
   a. Video RF Carrier Frequency
   b. Sound Carrier Frequency
   c. Modulation Depth (±2.5 % Typ.)
   d. FM Deviation (±7 % Typ.)
   e. P/S ratio (±1 dB Typ.)
   f. Nicam output enable to sleep
   g. Video RF carrier enable to sleep
• On chip Regulator 3.1 V


Application

• PAL and NTSC System VCR
• Satellite Receiver
• Set Top Box


Pinout

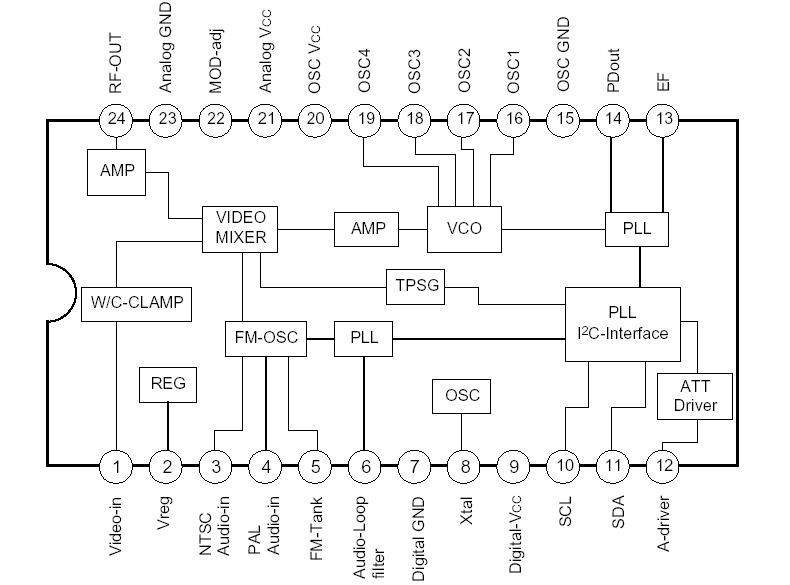

Connection Diagram


Specifications

• Supply voltage VCC . . . . . . . . . . . . . . .5.0±0.5 V
• Supply for VCO Varactor  . . . . . .30 to +0.5 °C
• Operating Temperature  . . . . . . 10 to +80 °C


Description

Fully synthesized I2C controlled UHF/VHF TV RF Modulator CXA1929M compatible with PAL and NTSC video formats.
