CXA1870S

Features: • I2C bus compatible. Various types of adjustments and user controls performed with two bus lines SCL and SDA.• H and V oscillation frequencies made nonadjusting with a countdown system.• Non-adjusting Y system filters (chroma trap, delay line)• Built-in V picture...

product image

CXA1870S Picture
See larger image
SeekIC No. : 004318165 Detail

CXA1870S: Features: • I2C bus compatible. Various types of adjustments and user controls performed with two bus lines SCL and SDA.• H and V oscillation frequencies made nonadjusting with a countdo...

CXA1870S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1870S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• I2C bus compatible. Various types of adjustments and user controls performed with two bus lines SCL and SDA.
• H and V oscillation frequencies made nonadjusting with a countdown system.
• Non-adjusting Y system filters (chroma trap, delay line)
• Built-in V picture distortion correction circuit
• Built-in delay line aperture compensation
• Auto cut-off function for automatic CRT cut-off adjustment and compensation for changes with time
• Multiple inputs Composite video: 2 systems (Built-in 2-input, 1-output video switch) Y/C separation input: 1 system On screen display input: 1 system


Application

• Color TV


Pinout

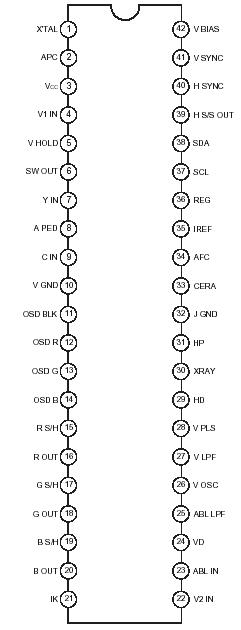

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . 12 V
• Operating temperature Topr  . . . . . . . 20 to +75 °C
• Storage temperature Tstg  . . . . . . . . 65 to +150 °C
• Allowable power dissipation PD . . . . . . . . . . . . 1.73 W


Description

The CXA1870S is a bipolar IC which integrates the NTSC color TV luminance signal processing, chroma signal processing, sync signal processing, and RGB signal processing onto a single chip.
