CXA1866Q

Features: • Ultra-high-speed operation with maximum conversion rate of 140MSPS• Low input capacitance: 7pF• Wide analog input bandwidth: 210MHz• Low power consumption: 325mW• Low error rate• Excellent temperature characteristics• 1 : 2 demultiplexed output...

product image

CXA1866Q Picture
See larger image
SeekIC No. : 004318164 Detail

CXA1866Q: Features: • Ultra-high-speed operation with maximum conversion rate of 140MSPS• Low input capacitance: 7pF• Wide analog input bandwidth: 210MHz• Low power consumption: 325mW&...

CXA1866Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1866Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Ultra-high-speed operation with maximum conversion rate of 140MSPS
• Low input capacitance: 7pF
• Wide analog input bandwidth: 210MHz
• Low power consumption: 325mW
• Low error rate
• Excellent temperature characteristics
• 1 : 2 demultiplexed output (TTL level)


Application

• Magnetic recording (PRML)
• Communications (QPSK, QAM)
• Liquid crystal display


Pinout

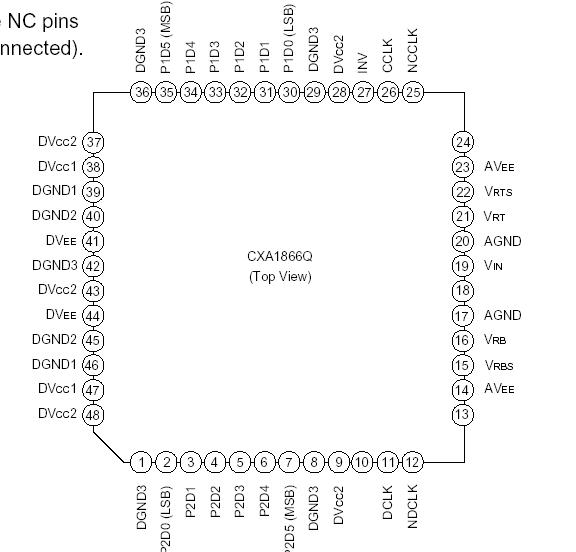

Connection Diagram


Specifications

• Supply voltage AVEE, DVEE  . . . . . . . . . . . . . . . . . .7.0 to +0.5 V
                                 DVCC*1 . . . . . . . . . . . . . . . . .. . 0.5 to +7.0 V
• Analog input voltage VIN  . . . . . . . . . . . . . . . . . . 2.7 to +0.5 V
• Reference input voltage VRT, VRB  . . . . . . . . . . . 2.7 to +0.5 V
I VRT VRB I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 V
• Digital input voltage DIN*2  . . . . . . . . . . . . . . . .4.0 to +0.5 V
I CCLK NCCLK I, I DCLK NDCLK I 2.5 V
• Digital output current ID0 to ID6  . . . . . . . . . . . 30 to +30 mA
• Storage temperature Tstg  . . . . . . . . . . . . . . .65 to +150 °C
• Ambient operating temperature Ta  . . . .  . . . . .20 to +75 °C
• Allowable power dissipation PD  . . . . . . . . . . . . . .  . . . .750 mW


Description

The CXA1866Q is a 6-bit ultra-high-speed flash A/D converter IC capable of digitizing analog signals at the maximum rate of 140MSPS. The digital input level is compatible with ECL 100K/10KH/10K.
