CXA1852N

Features: • Quadrature modulator IC has a built-in /2 phase shifter.• Local frequency = 300.1 MHz (max.); I&Q = 36 kHz (max.)• Small phase error• Operating voltage range: 2.7 to 5 V• Power saving function• 20-pin SSOP package used for set size reductionAppli...

product image

CXA1852N Picture
See larger image
SeekIC No. : 004318160 Detail

CXA1852N: Features: • Quadrature modulator IC has a built-in /2 phase shifter.• Local frequency = 300.1 MHz (max.); I&Q = 36 kHz (max.)• Small phase error• Operating voltage range:...

CXA1852N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1852N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Quadrature modulator IC has a built-in /2 phase shifter.
• Local frequency = 300.1 MHz (max.); I&Q = 36 kHz (max.)
• Small phase error
• Operating voltage range: 2.7 to 5 V
• Power saving function
• 20-pin SSOP package used for set size reduction


Application

• CT2 digital cordless telephone
• Digital cellular


Pinout

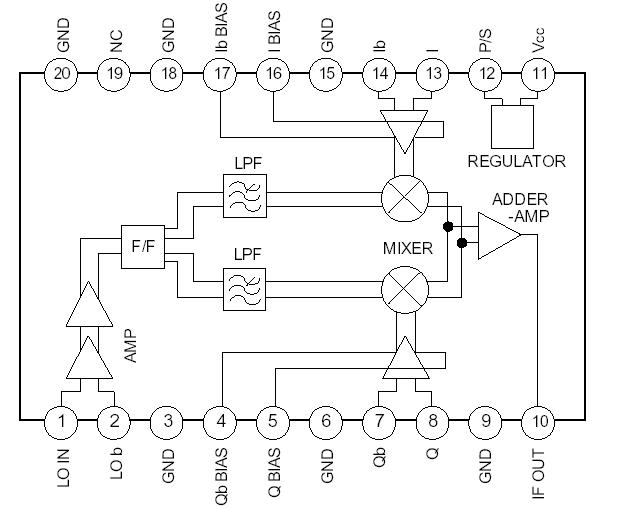

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 V
•Operating temperatureTopr  . . . . . . . . . . . . . .20 to +70 °C
• Storage temperature Tstg . . . . . . . . . . . . .  65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . . . . . 530* mW


Description

The CXA1852N is an IC package that combines a /2 phase shifter with a quadrature modulator. This is suitable for 900 MHz digital cordless telephone (CT2) and digital cellular.
