Features:

• Maximum operating rate = 33MHz (min.)
• Low power consumption: 320mW
• S/H clock pulse generator circuit
• Built-in clock pulse generator for A/D converter


Application

·When used in combination of the CXA1844Q, the CXA1843Q achieves A/D conversion.


Pinout

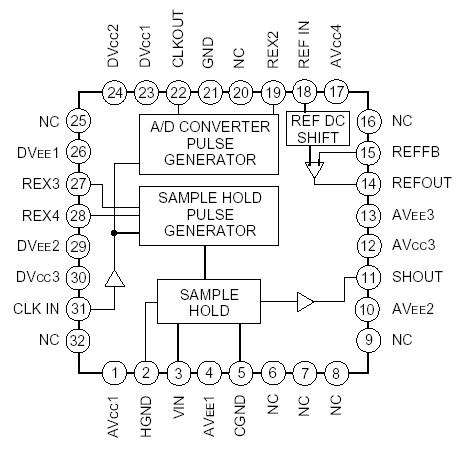

Connection Diagram


Specifications

• Supply voltage VCC. . . . . . . . . . . . . . . .. .. . ..  7 V
                           VEE. . . . . . . . . . . . . . .. . . .. . 7 V
• Input voltage
(VIN pin) VIN . . . . . . . . . . .. . . . . ..VEE to AVCC 0.3 V
(REFIN pin) VREFIN . . . . . .. . ... . .+1 to AVCC +0.3 V
(CLKIN pin) VCLK GND . . ... . . 0.5 to DVCC + 0.3 V
(REX 2, 3, 4 pins) VREX2, 3, 4. . . . GND to GND + 4 V
• Reference voltage
(REFFB pin) VREFFB. . . . . . . . . . . . . . . . . VEE to +3 V
(REFOUT pin) VREFOUT. . . . . . . .VEE to AVCC + 0.3 V
• Output current
(REFFOUT pin) IREFOUT. . . . . . . . . . . .  1 to +1 mA
(SHOUT pin) ISHOUT . . . . . . . . . . . . 12 to +12 mA
(CLKOUT pin) IADC. . . . . . . . . . . .   1.5 to +1.5 mA
• Storage temperature Tstg . . . . .65 to +150 °C
• Allowable power dissipation PD. . . . . . . . . . 1.1 W


Description

The CXA1843Q is a bipolar IC designed to sampleand-hold video and various other signals with high speed. It is ideal for video and other signal conversions.
