CXA1829N

Features: • Operates on a single 5V power supply.• Low power consumption. Read: 115 mW Write (IW = 15 mA): 160 mW + IW× 5 Power Save: 7 mW• Write current can be varied through an external resistor. Built-in stabilizer circuit provides stable current, preventing voltage and temper...

product image

CXA1829N Picture
See larger image
SeekIC No. : 004318153 Detail

CXA1829N: Features: • Operates on a single 5V power supply.• Low power consumption. Read: 115 mW Write (IW = 15 mA): 160 mW + IW× 5 Power Save: 7 mW• Write current can be varied through an e...

CXA1829N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1829N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operates on a single 5V power supply.
• Low power consumption. Read: 115 mW Write (IW = 15 mA): 160 mW + IW× 5 Power Save: 7 mW
• Write current can be varied through an external resistor. Built-in stabilizer circuit provides stable current, preventing voltage and temperature drift.
• Drives up to 8 heads.
• Supports thin film heads or 2-pin MIG heads.
• Emitter follower-type Read amplifier features 290 times gain (typ.).
• Write-unsafe detection circuit.
• Damping resistance is switched at Write (315 ½).
• Simultaneous Write function.
• Supply voltage monitor circuit prohibits error writing during power surge or abnormal voltage.
• IC protection circuit for head-to-ground short circuit protection.
• Differential input capacitance at Read: 14 pF (typ.).
• Write data input minimum pulse width: 10 ns
• Read data output in Write mode becomes a high impedance due to the improved Read data offset when Write is switched to Read.
• Non-selected head DC voltage falls to GND level.


Pinout

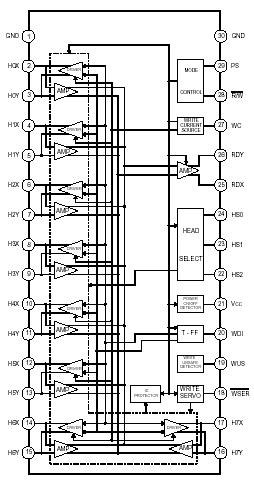

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7.0 V
• Write current IW  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mAo-p
• Operating temperature Topr  . . . . . . . . . . . . . . . . . . . . . . . .20 to +75 °C
• Operating temperature at Simultaneous Write Topr  . . . . .  20 to +30 °C
• Storage temperature Tstg  . . . . . . . . . . . . . . . . . . . . . . . . .55 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . . . . . . . . . . . . . . . . . .480 mW


Description

The CXA1829N is a Read/Write amplifier for hard disk drive thin-film heads and is designed to handle up to 8-channel heads.
