Features:

• Built-in pilot signal detector and BPF
• Adopts a high-precision analog filter with no switching noise
• Built-in SP/LP identification circuit and clog detection circuit
• Low noise, high-precision bipolar process


Application

•ATF for 8 mm VCRs


Pinout

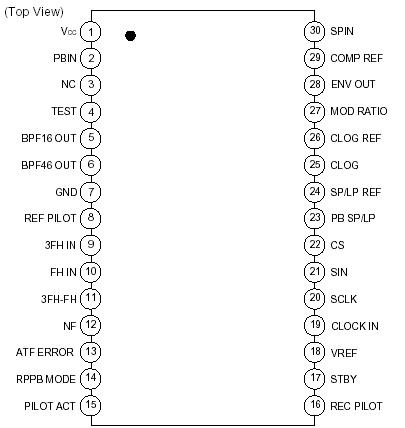

Connection Diagram


Specifications

Item Symbol Rating Unit
Supply voltage (Note 1) VCC 0.4 to 7.0 V
Input voltage (Note 1) VI 0.4 to VCC V
Total power dissipation Ta 25 °C (Note 2) PD 1025 mW
Operating temperature range Topr 10 to 75 °C
Storage temperature range Tstg 40 to 125 °C
Note 1) The circuit GND pin is used as the reference for all voltages.
Note 2) Substrate mounting (Sony's standard pattern on a 50 mm* 50 mm, 1.6 mm thick glass fabric base epoxy substrate) and no-wind conditions.
             Total power dissipation follows a load reduction ratio of 8.2 mW/°C at temperatures above Ta = 25 °C.


Description

The CXA1814N is an IC developed for ATF (Automatic Track Finding) in 8 mm VCRs, and integrates the major functions necessary for ATF onto a single chip.
