Product Details

Description



Features:

• Low current consumption Icc = 8.0mA (typ.) 0.3mA (typ.) in power saving mode
• Maximum operating frequency 1.8GHz guaranteed
• Operating supply voltage range 2.7 to 5.5V
• Ultra small 20-pin SSOP package
• Two types of phase comparator output: For external charge pump fR fP Two internal charge pumps DO1 DO2


Application

1.1GHz-band mobile communication equipment such as cellular telephones


Pinout

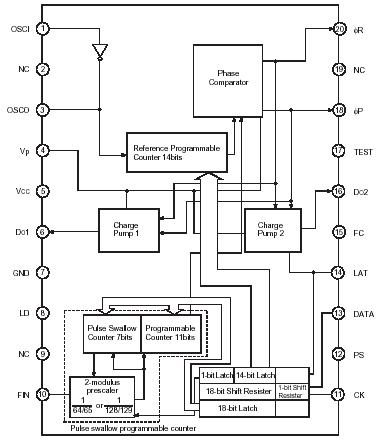

Connection Diagram


Specifications

• Supply voltage Vcc  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
• Operating temperature Topr  . . . . . . . . . . .35 to +85 °C
• Storage temperature Tstg  . . . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . . . .  300 mW


Description

The CXA1787N is a frequency synthesizer PLL IC developed for use in mobile communication systems.

This CXA1787N has low current consumption, small package and is suitable for portable sets of cellular telephone and others.
