CXA1786N

Features: • Low current consumption Icc = 6.0mA (typ.) 0.3mA (typ.) in power saving mode• Maximum operating frequency 1.1GHz guaranteed• Operating supply voltage range 2.7 to 5.5V• Ultra small 20-pin SSOP package• Two types of phase comparator output: For external cha...

product image

CXA1786N Picture
See larger image
SeekIC No. : 004318143 Detail

CXA1786N: Features: • Low current consumption Icc = 6.0mA (typ.) 0.3mA (typ.) in power saving mode• Maximum operating frequency 1.1GHz guaranteed• Operating supply voltage range 2.7 to 5.5V&...

CXA1786N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1786N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low current consumption Icc = 6.0mA (typ.) 0.3mA (typ.) in power saving mode
• Maximum operating frequency 1.1GHz guaranteed
• Operating supply voltage range 2.7 to 5.5V
• Ultra small 20-pin SSOP package
• Two types of phase comparator output: For external charge pump fR fP Two internal charge pumps DO1 DO2


Application

·1.1GHz-band mobile communication equipment such as cellular telephones


Pinout

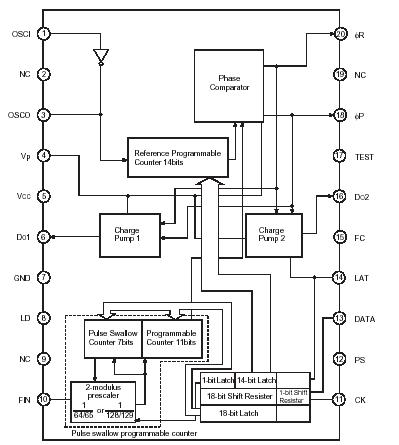

Connection Diagram


Specifications

• Supply voltage Vcc  . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
• Operating temperature Topr  . . . . . . . . . 35 to +85 °C
• Storage temperature Tstg  . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . . .300 mW


Description

The CXA1786N is a frequency synthesizer PLL IC developed for use in mobile communication systems. This IC has low current consumption, small package and is suitable for portable sets of cellular telephone and others.
