CXA1746Q

Features: • Loudness• Volume control (from 0 dB to 87 dB, ¥ dB: Fine (1 dB-step) Coarse (8 dB-step)• Balance• Tone control (3-band, 2 dB-step from 15 dB to +15 dB)• Fader (2 dB-step to 20 dB, 25 dB, 35 dB, 45 dB, 60 dB, ¥ dB)• Input and gain selector (4 ...

product image

CXA1746Q Picture
SeekIC No. : 004318135 Detail

CXA1746Q: Features: • Loudness• Volume control (from 0 dB to 87 dB, ¥ dB: Fine (1 dB-step) Coarse (8 dB-step)• Balance• Tone control (3-band, 2 dB-step from 15 dB to +15 dB)•...

floor Price/Ceiling Price

Part Number:
CXA1746Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Loudness
• Volume control (from 0 dB to 87 dB, ¥ dB: Fine (1 dB-step) Coarse (8 dB-step)
• Balance
• Tone control (3-band, 2 dB-step from 15 dB to +15 dB)
• Fader (2 dB-step to 20 dB, 25 dB, 35 dB, 45 dB, 60 dB, ¥ dB)
• Input and gain selector (4 channels)
• Serial data control (DATA, CLK, CE)
• Single 8 V power supply
• Zero-cross detection circuit
• Timer
• Power-off mute



Pinout

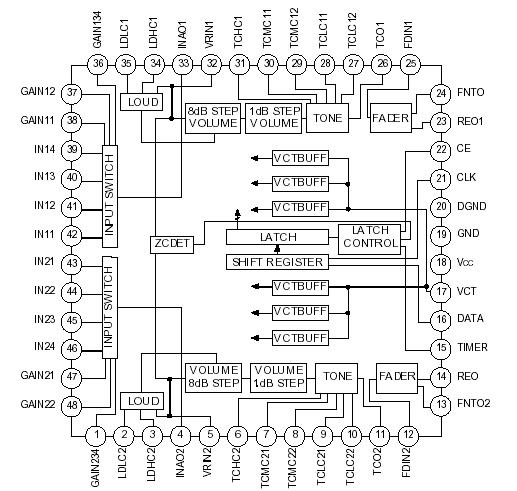

  Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . .13 V
• Operating temperature Topr  . . . . . . .40 to +85 °C
• Storage temperature Tstg . . . . . . . . 65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . .350 mW



Description

The CXA1746Q is a 2-channel electronic volume IC. A 34-bit serial data input controls the level and characteristics of the output signal. It may be used in car stereos and general audio systems.
