CXA1744AR

Features: • Mixer, RSSI, detector, and various other functions required of a digital cordless phone IF amplifier.• Local oscillator and multiplier for the mixer.• Low power consumption (8.4mA at 3.0V)• Small package (48-pin LQFP).Application•Digital cordless telephone...

product image

CXA1744AR Picture
See larger image
SeekIC No. : 004318134 Detail

CXA1744AR: Features: • Mixer, RSSI, detector, and various other functions required of a digital cordless phone IF amplifier.• Local oscillator and multiplier for the mixer.• Low power consump...

CXA1744AR Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1744AR
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Mixer, RSSI, detector, and various other functions required of a digital cordless phone IF amplifier.
• Local oscillator and multiplier for the mixer.
• Low power consumption (8.4mA at 3.0V)
• Small package (48-pin LQFP).


Application

•Digital cordless telephone of Europe (CT-2)


Pinout

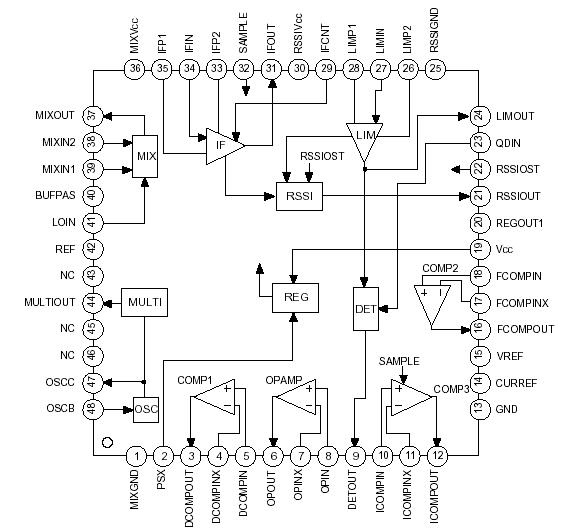

Connection Diagram


Specifications

• Supply voltage VCC. . . . . . . . . . . . . . . . . . . . . . . . . . ..14 V
• Operating temperature Topr . . . . . . . . . . .20 to +75 °C
• Storage temperature Tstg . . . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD . . . . . . . . . . . . . . .500 mW


Description

The CXA1744AR is an IF amplifier IC designed for digital cordless telephone of Europe, CT-2.
