Product Details

Description



Features:

• Include a ceramic filter function, which is normally mounted externally.
• Quadrature detection discriminator function.
• This IC has almost all IF functions and is ideal for reduction in set size because of few external parts required.
• Channel filter conforming to the AMPS standard.
• Wide operating voltage range (2.7 V to 3.6 V) and low current consumption (Icc=10 mA (typ.) when Vcc= 3 V).
• Wide range and excellent temperature characteristics for the RSSI (receiving signal strength indicator).


Application

•Ideally suited for cellular phones, particularly handheld sets.


Pinout

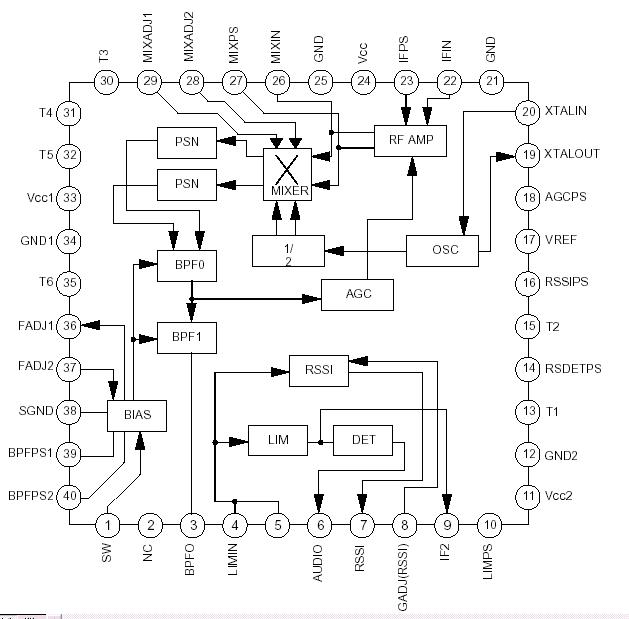

Connection Diagram


Specifications

• Supply voltage VCC . . . . . . . . . . . . . . . . . .. . . . .  .5 V
•Operating temperature Topr . . . . . . . 35 to +85 °C
• Storage temperature Tstg . . . . . . . 65 to +150 °C
• Allowable power dissipation PD . . . . . . . . . . 500 mW


Description

The CXA1742Q is an analog cellular(AMPS) FM IF IC which include an IF filter.
