Product Details

Description



Features:

Analog multiplier 4ch
• Maximum input voltage ±1.3V
• Maximum output voltage ±2.7V (RL = 3.9k½)
• Frequency response 1.0MHz (3dB)
• 4 inputs, 1 output 2ch
• 2 inputs, 1 output 2ch Operational amplifier 2ch
• Maximum output voltage ±3.65V (RL = 1k½)
• Frequency response 1MHz (3dB) Analog switch 1ch
• Maximum output voltage
• Frequency response


Application

• CRT display monitors
• Projectors


Pinout

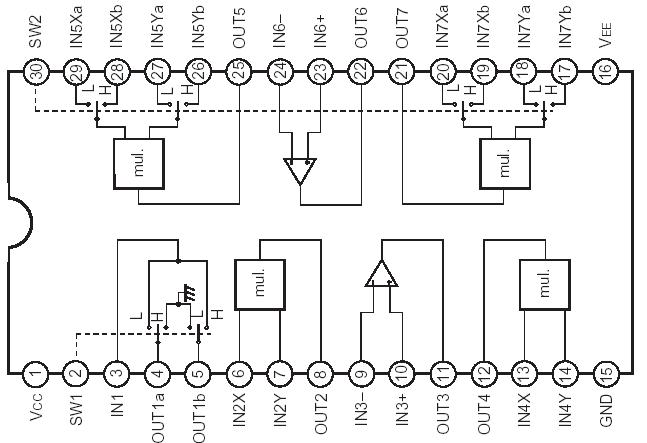

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
                           VEE  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
• Operating temperature Topr  . . . . . . . . . . . . . . . .20 to +75 °C
• Storage temperature Tstg  . . . . . . . . . . . . . . . ..65 to +150 °C
• Allowable power dissipation PD
                                                (CXA1726AM)  . . . . . . . . . . 625 mW
                                                (CXA1726AS)  . . . . . . . . .  1350 mW


Description

The CXA1726AM/AS is a multiplier IC which is used for dynamic convergence, dynamic focus and others in CRT display monitors and projectors. It is used in conjunction with an IC (CXA1470AM/AS) which generates waveforms for deflection compensation.
