Product Details

Description



Features:

• High transimpedance: Q 11.2k½ (Typ.) Q 10.8k½ (Typ.)
• Wide band width (3dB): Q 177MHz (Typ.) Q 157MHz (Typ.)
• Maximum input current: 1mA
• Low noise: 1.7pA/Ã Hz (Typ.)


Application

• SONET/SDH: 155Mb/s
• Fiber channel: 133Mb/s
• FDDI: 125Mb/s


Pinout

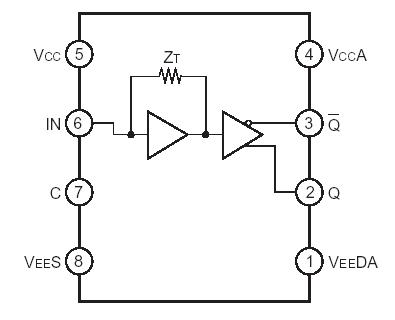

Connection Diagram


Specifications

• Supply voltage .............................VCC VEE 0.3 to +7.0 V
• Minimum input voltage.......................................... VIN VEE V
• Input current IIN ..............................................1 to +1 mA
• Output current
(Q/Q) (Continuous) IO ...........................................0 to 50 mA
(Surge) ................................................................0 to 100 mA
• Storage temperature Tstg .........................65 to +150 °C


Description

CXA1685M is a low noise transimpedance amplifier, particularly suitable for fiber-optic system. It is fabricated using high-speed bipolar process.
