CXA1684M

Features: • High transimpedance: (Q) 3.9 k (Typ.) (QB) 3.7 k (Typ.)• Wide band width (3dB): (Q) 630 MHz (Typ.) (QB) 390 MHz (Typ.)• Maximum input current: 1mAApplication• Q output SONET/SDH: 622 Mb/s Fiber channel: 532 Mb/s• Differential output SONET/SDH: 155 Mb/s Fib...

product image

CXA1684M Picture
See larger image
SeekIC No. : 004318115 Detail

CXA1684M: Features: • High transimpedance: (Q) 3.9 k (Typ.) (QB) 3.7 k (Typ.)• Wide band width (3dB): (Q) 630 MHz (Typ.) (QB) 390 MHz (Typ.)• Maximum input current: 1mAApplication• Q o...

CXA1684M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1684M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High transimpedance: (Q) 3.9 k (Typ.)
                                      (QB) 3.7 k (Typ.)
• Wide band width (3dB): (Q) 630 MHz (Typ.)
                                            (QB) 390 MHz (Typ.)
• Maximum input current: 1mA


Application

• Q output
  SONET/SDH: 622 Mb/s
  Fiber channel: 532 Mb/s
• Differential output
  SONET/SDH: 155 Mb/s
  Fiber channel: 133,266 Mb/
  ESCON: 200 Mb/s

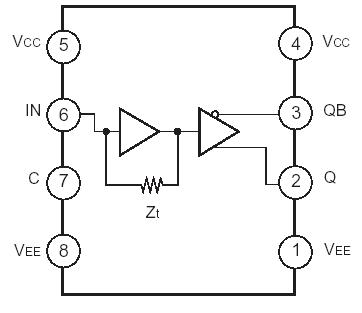

Pinout

Connection Diagram


Specifications

• Supply voltage VCCVEE ......................... 0.3 to +7.0 V
• Minimum input voltage VIN ......................................VEE V
• Input current IIN .........................................1 to +1 mA
• Output current
   (Continuous) IO .............................................0 to 50 mA
   (Q/QB) (Surge)............................................ 0 to 100 mA
• Storage temperature Tstg ....................65 to +150 °C


Description

CXA1684M is a low noise transimpedance amplifier, particularly suitable for fiber-optic system. CXA1684M is fabricated using high-speed bipolar process.
