CXA1616N

Features: • Output of synchronous signal polarity information obtainable• Supported polarities and amplitudes of input signals are as follows: - V. separate sync (positive/negative polarity, 1 to 5Vp-p For capacitor input 1.5 to 5Vp-p) - H. separate sync (positive/negative polarity, 1 ...

product image

CXA1616N Picture
See larger image
SeekIC No. : 004318102 Detail

CXA1616N: Features: • Output of synchronous signal polarity information obtainable• Supported polarities and amplitudes of input signals are as follows: - V. separate sync (positive/negative polar...

CXA1616N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1616N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Output of synchronous signal polarity information obtainable
• Supported polarities and amplitudes of input signals are as follows:
   - V. separate sync (positive/negative polarity, 1 to 5Vp-p For capacitor input 1.5 to 5Vp-p)
   - H. separate sync (positive/negative polarity, 1 to 5Vp-p)
   - Composite sync (positive/negative polarity, 1 to 5Vp-p)
   - Sync-on video (negative polarity sync level: 0.2 to 0.6Vp-p, picture level: 0 to 2.1Vp-p)


Application

CRT display monitors


Pinout

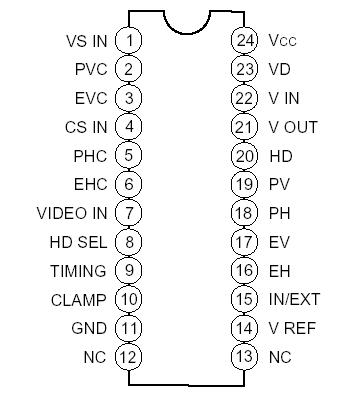

Connection Diagram


Specifications

• Supply voltage Vcc ..............................................14 V
• Operating temperature Topr .............20 to +75 °C
• Storage temperature Tstg ..............65 to +150 °C
• Allowable power dissipation PD ....................900 mW


Description

The CXA1616N/S automatically selects one of three types of sync signals separate sync, composite sync, or sync-on video to shape the waveform. It is ideally suited as a synchronous signal processor for auto tracking type displays.
