CXA1598S

Features: • Inductor (coil) is unnecessary• The six parameters (low frequency gain, medium frequency gain, peaking gain, medium frequency compensation frequency, peaking frequency, and Q) required for recording equalizer amplifiers can be set independently with external resistance̶...

product image

CXA1598S Picture
See larger image
SeekIC No. : 004318098 Detail

CXA1598S: Features: • Inductor (coil) is unnecessary• The six parameters (low frequency gain, medium frequency gain, peaking gain, medium frequency compensation frequency, peaking frequency, and Q...

CXA1598S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1598S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Inductor (coil) is unnecessary
• The six parameters (low frequency gain, medium frequency gain, peaking gain, medium frequency compensation frequency, peaking frequency, and Q) required for recording equalizer amplifiers can be set independently with external resistance
• Low frequency boost is possible with an external capacitor
• Built-in recording mute function (requiring only an external time constant circuit to implement soft mute)
• Built-in 2 channels
• Small package




Application

Recording equalizer amplifier for stereo analog cassette decks


Pinout

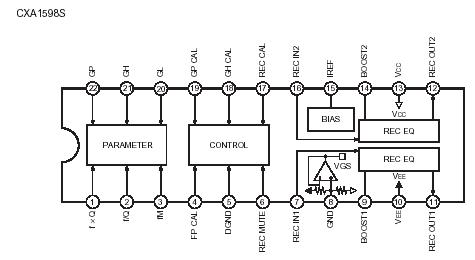

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 V
• Operating temperature Topr  . . . . . . . . . . . . . . 20 to +75 °C
• Storage temperature Tstg  . . . . . . . . . . . . . . . 65 to +150 °C
• Allowable power dissipation PD
                                       (CXA1598M)  . . . . . . . . . . . . . . .570 mW
                                        (CXA1598S)  . . . . . .. . . . . . . . .880 mW


Description

The CXA1598M/S is a bipolar IC developed for recording equalizer amplifier in analog cassette decks. Incorporating the filter circuit has eliminated the external inductor. Also, each of the six parameters required for equalizer amplifiers can be set independently with external resistance.
