CXA1563M

Features: • Few external parts• Spectral skewing circuit are on-chip• NR ON/OFF, REC/PB, MPX filter ON/OFF, Dolby S type switches• Small package (28-pin SOP, 28-pin SDIP)• Low current consumption 13mA Typ. (power supply ±6V)• Dual channel processorsPinoutSpecifi...

product image

CXA1563M Picture
See larger image
SeekIC No. : 004318090 Detail

CXA1563M: Features: • Few external parts• Spectral skewing circuit are on-chip• NR ON/OFF, REC/PB, MPX filter ON/OFF, Dolby S type switches• Small package (28-pin SOP, 28-pin SDIP)R...

CXA1563M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1563M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Few external parts
• Spectral skewing circuit are on-chip
• NR ON/OFF, REC/PB, MPX filter ON/OFF, Dolby S type switches
• Small package (28-pin SOP, 28-pin SDIP)
• Low current consumption 13mA Typ. (power supply ±6V)
• Dual channel processors


Pinout

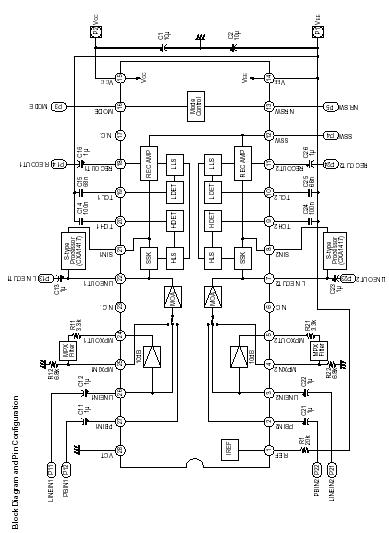

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 V
• Operating temperature Topr  . . . . . . . . . . . .40 to +85 °C
• Storage temperature Tstg  . . . . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . .600 (SOP) mW
                                                      . . . . . . . . . 1200 (SDIP) mW


Description

The CXA1563M/S is a bipolar IC incorporating dual channel Dolby B-C type noise reduction (NR) system and Dolby S type switch. Dolby B-C-S type stereo system is completed by using this IC in conjunction with two CXA1417S or two CXA1417Q.

A reduction in the number of external parts and small package of CXA1563M/S have been achived due to the fact that the spectral skewing circuits are all on-chip.
