CXA1518Q

Features: • External parts greatly reduced with a built-in active filter.• Count down can be used for broadcast mode discrimination so that adjustment for discrimination system (Q-OSC) is not required.• Output level of 380 mVrms (1 kHz, MONO, 100 %)• Forced monaural operate...

product image

CXA1518Q Picture
See larger image
SeekIC No. : 004318072 Detail

CXA1518Q: Features: • External parts greatly reduced with a built-in active filter.• Count down can be used for broadcast mode discrimination so that adjustment for discrimination system (Q-OSC) i...

CXA1518Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1518Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• External parts greatly reduced with a built-in active filter.
• Count down can be used for broadcast mode discrimination so that adjustment for discrimination system (Q-OSC) is not required.
• Output level of 380 mVrms (1 kHz, MONO, 100 %)
• Forced monaural operates with both stereo and bilingual broadcasts.
• Built-in digital facsimile interference elimination filter.
• Low supply voltage (VCC=5 V)
• The pin configuration of the CXA1518S is identical to that of the CXA1138AS.


Application

• Color TVs
• Hi-Fi VCRs
• Liquid crystal TVs


Pinout

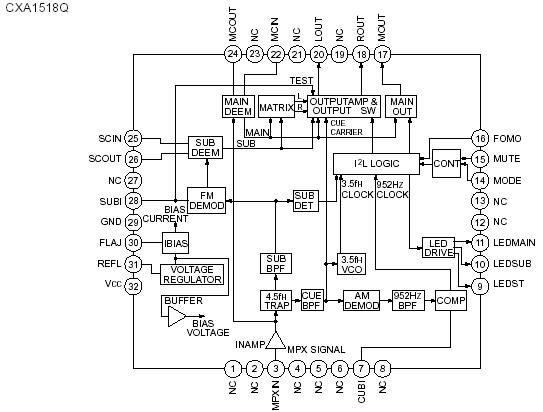

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 V
• Input signal (Pin 6) VIS  . . . . . . . . . . . . . . . . . . . . . .0.6 Vp-p
• Control voltage (Pins 12, 13, 14) VIC . . . . . . . . . . . . . VCC V
• Operating temperature Topr  . . . . . . . . . . . 20 to +75 °C
• Storage temperature Tstg  . . . . . . . . . . . . 65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . .  900 mW (SDIP)
                                                     . . . . . . . . . .  470 mW (QFP)
• LED drive current Iled  . . . . . . . . . . . . . . . . . . . . . . . . 10 mA


Description

The CXA1518Q/S are bipolar ICs designed for EIAJ TV sound multiplexing decoders. These ICs provide various functions including sound multiplexing demodulation, broadcast mode discrimination (stereo/bilingual discrimination display), mode display, and muting.
