CXA1352AS

Features: • Microcomputer control possible• Built-in electronic volume• Built-in pseudo loudness function• Built-in balance function• Each channel corresponds to 5 elements• 2 channels of FIX OUT and LINE OUT pinsApplicationGraphic equalizer for cassette tape re...

product image

CXA1352AS Picture
See larger image
SeekIC No. : 004318056 Detail

CXA1352AS: Features: • Microcomputer control possible• Built-in electronic volume• Built-in pseudo loudness function• Built-in balance function• Each channel corresponds to 5 elem...

CXA1352AS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA1352AS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Microcomputer control possible
• Built-in electronic volume
• Built-in pseudo loudness function
• Built-in balance function
• Each channel corresponds to 5 elements
• 2 channels of FIX OUT and LINE OUT pins


Application

Graphic equalizer for cassette tape recorder with radio, mobile stereo and portable stereo


Pinout

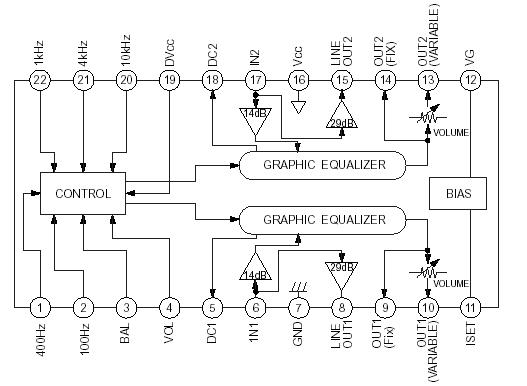

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . .  .12 V
• Storage temperature Tstg  . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . .1200 mW


Description

The CXA1352AS is a bipolar IC for graphic equalizer use. All controls are DC performed while the addition of single-potentiometers easily composes a 2-channel graphic equalizer.
