Product Details

Description



Features:

• Serial control through I2C bus
• 5-channel 8-bit D/A converter
• Built-in 4general-purpose I/O ports (Digital I/O)
• I/O can be specified to respective ports independently
• Selection of 8 slave addresses possible through address select pins (3 pins)


Application

The IC, which cannot support I2C bus, can support it by connecting its control pin to the CXA1315M/P.


Pinout

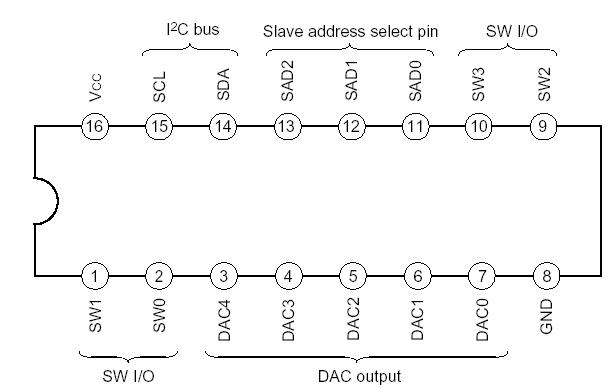

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . .  12 V
• Operating temperature Topr  . . . . . . . .20 to +75 °C
• Storage temperature Tstg  . . . . . . . .  65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . .  960 mW


Description

The CXA1315M/P is developed as a 5-channel 8- bit D/A converter supporting with I2C bus.
