Product
:
Output Voltage (Channel 2)
:
Output Current (Channel 2)
:
Mounting Style
:
Number of Outputs
: 1
Input Voltage Range
: 18 V to 75 V
Input Voltage (nominal)
: 48 V
Output Voltage (Channel 1)
: 3.3 V
Output Power
: 10 W
Package / Case Size
: 2 in x 1 in x 0.536 in
Output Current (Channel 1)
: 2.4 A

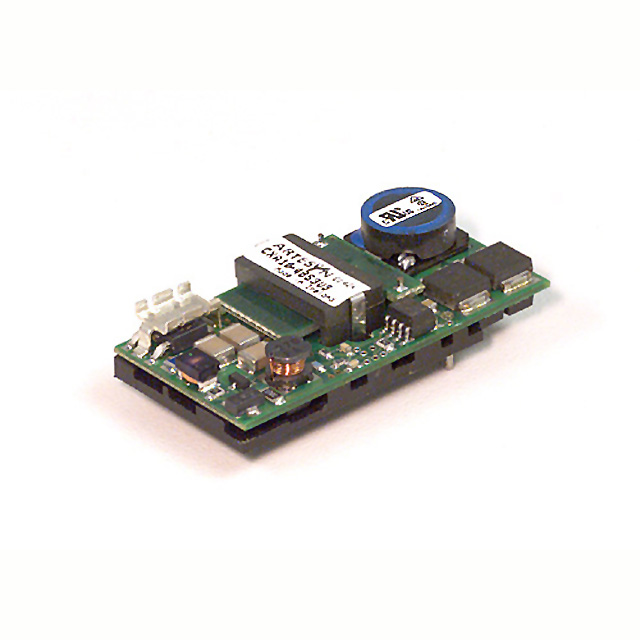

DescriptionThe CXA10-48S3V3J comprising of five different models delivers single and dual output voltages covering 3.3 V, 5 V, 12 V, ±5 V, ±12V and ±15 V. It has a wide 4:1 input voltage range of 18Vdc to 75 Vdc. It is is supplied in the industry standard footprint of 2.0 x 1.0 x 0.394 inches.
The features of CXA10-48S3V3J can be summarized as:(1)4:1 input voltage range; (2)Operating ambient temperature of -40°C to +70°C in still air; (3)High demonstrated reliability with conservative component deratings; (4)Complies with ETS 300 019-1-3/2-3; (5)Complies with ETS 300 132-2 input voltage and current requirements; (6)Fully compliant with ETS 300 386-1; (7)Pin compatible with NFC10 and BXA10 series; (8)Basic insulation system (input to output); (9)2 year warranty.
The output specifications of the CXA10-48S3V3J are:(1)voltage accuracy:±1.0%;(2)line regulation:single/dual positives..±0.1%,dual negatives..±0.2%;(3)load regualtion(full load to minimum load):±0.15%;(4)min.load(all outputs):10%;(5)temperature coefficient:±0.01%/°C;(6)transient response:±1.0%;(7)load cross regualtion:±5.0%.
If you want to know more information such as the electrical characteristics about the CXA10-48S3V3J, please download the datasheet in www.seekic.com or www.chinaicmart.com .
Parameters: | Technical/Catalog Information | CXA10-48S3V3J |
| Vendor | Emerson Network Power |
| Category | Power Supplies |
| Voltage - Input | 18 ~ 75VDC |
| Output | 3.3V |
| Power (Watts) | 10W |
| Number of Outputs | 1 |
| 1st Output | 3.3 VDC @ 2.4A |
| 2nd Output | - |
| 3rd Output | - |
| 4th Output | - |
| Type | Non-Isolated |
| Mounting Type | Through Hole |
| Packaging | Tray |
| Package / Case | 5-DIP |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | CXA10 48S3V3J
CXA1048S3V3J
393 1191 ND
3931191ND
393-1191
|
CXA10-48S3V3J Data Sheet
