CX65003

Features: • Linear POUT of 24.5 dBm• OIP3 of 48 dBm• Excellent W-CDMA performance• Internal bias circuits• 8-pin SOIC 5.994 x 4.928 mm package with downset paddleApplication• PCS/DCS/2.5G/3G base stations• Wireless Local Area Networks (WLANs)• GSM/CD...

product image

CX65003 Picture
See larger image
SeekIC No. : 004317979 Detail

CX65003: Features: • Linear POUT of 24.5 dBm• OIP3 of 48 dBm• Excellent W-CDMA performance• Internal bias circuits• 8-pin SOIC 5.994 x 4.928 mm package with downset paddleApplic...

CX65003 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CX65003
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Linear POUT of 24.5 dBm
• OIP3 of 48 dBm
• Excellent W-CDMA performance
• Internal bias circuits
• 8-pin SOIC 5.994 x 4.928 mm package with downset paddle


Application

• PCS/DCS/2.5G/3G base stations
• Wireless Local Area Networks (WLANs)
• GSM/CDMA/W-CDMA handsets
• Wireless Local Loop (WLL) and Industrial, Scientific, Medical (ISM) bands
• Repeaters
• Telematics


Pinout

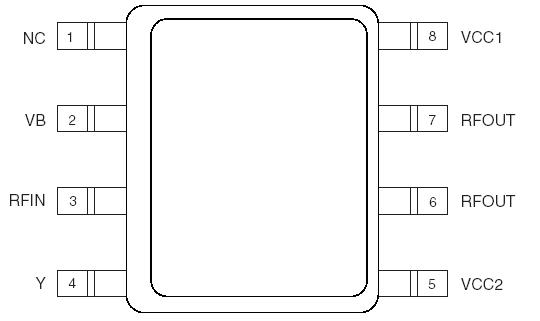

Connection Diagram


Specifications

Parameter Symbol Min Typical Max Units
RF input power PIN     15 dBm
Supply voltage (VCC1 and VCC2 pins) VCC     5.5 V
Supply current (ID + IBIAS) ICC     240 mA
Power dissipation       1.3 W
Case operating temperature TC 40   +85
Storage temperature TST 55   +125
Junction temperature TJ     +150

Note: Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other parameters set at or below their nominal value.




Description

Skyworks CX65003 power amplifier driver offers a desirable combination of features that provide superb performance and ease of use in a low-cost Surface-Mounted Technology (SMT) package. This Gallium Arsenide (GaAs) Heterojunction Bipolar Transistor (HBT) power amplifier driver was developed and optimized for extreme linear performance in a variety of applications. It is ideal as a driver or output stage in transceivers and repeaters for Wideband Code Division Multiple Access (W-CDMA) and CDMA2000 applications.

The 8-pin Small Outline Integrated Circuit (SOIC) device package and pinout are shown in Figure 1. Figure 2 shows a functional block diagram for the CX65003. Signal pin assignments and functional pin descriptions are provided in Table 1.
