Features:

• Direct Sensor Input
• High Output Torque
• Wide Output Voltage Range
• High Impedance Inputs
• Accurate Down to 10 V VCC
• Fault Protection
Overvoltage
Short Circuit
Low Voltage Operation
• Internally Fused Leads in DIP16 and SO20L Packages


Pinout

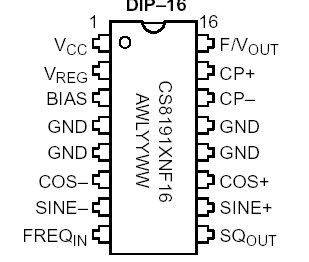

Connection Diagram


Specifications

Rating


Value
Unit
Supply Voltage, VCC
< 100 ms Pulse Transient
Continuous
60
24
V
V
Operating Temperature Range
Junction Temperature Range
Storage Temperature Range
Elecrostatic Discharge (Human Body Model)
40 to +105
40 to +150
55 to +165
4.0
°C
°C
°C
kV
Lead Temperature Soldering:
Wave Solder (through hole styles only) (Note 1.)
Reflow: (SMD styles only) (Note 2.)
260 peak
230 peak
°C
°C
1. 10 seconds maximum.
2. 60 second maximum above 183°C.
*The maximum package power dissipation must be observed.


Description

The CS8191 is specifically designed for use with 4 quadrant aircore meter movements. The IC includes an input comparator for sensing input frequency such as vehicle speed or engine RPM, a charge pump for frequency to voltage conversion, a bandgap reference for stable operation and a function generator with sine and cosine amplifiers that differentially drive the meter coils.

The CS8191 has a higher torque output and better output signal symmetry than other competitive parts (CS289, and LM1819). It is protected against short circuit and overvoltage (60 V) fault conditions. Enhanced circuitry permits functional operation down to 8.0 V.
