COP8SDE9

Features: KEY FEATURES8k bytes Flash Program Memory with Security FeatureVirtual EEPROM using Flash Program Memory 256byte volatile RAM USART with onchip baud generator2.7V 5.5V In-System Programmability of FlashHigh endurance -100k Read/Write Cycles Superior Data Retention - 100 years Dual Clock...

product image

COP8SDE9 Picture
See larger image
SeekIC No. : 004315385 Detail

COP8SDE9: Features: KEY FEATURES8k bytes Flash Program Memory with Security FeatureVirtual EEPROM using Flash Program Memory 256byte volatile RAM USART with onchip baud generator2.7V 5.5V In-System Programma...

COP8SDE9 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
COP8SDE9
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

KEY FEATURES
8k bytes Flash Program Memory with Security Feature
Virtual EEPROM using Flash Program Memory
256byte volatile RAM
USART with onchip baud generator
2.7V 5.5V In-System Programmability of Flash
High endurance -100k Read/Write Cycles
Superior Data Retention - 100 years
Dual Clock Operation with HALT/IDLE Power Save
Modes
Two 16-bit timers:
- Timer T2 can operate at high speed (50 ns
resolution)
- Processor Independent PWM mode
- External Event counter mode
- Input Capture mode
Brown-out Reset (COP8SBE9/SCE9)
High Current I/Os
- B0 B3: 10 mA @ 0.3V
- All others: 10 mA @ 1.0V
OTHER FEATURES
Single supply operation:
- 2.7V5.5V (0°C to +70°C)
- 4.5V5.5V (−40°C to +125°C)
Quiet Design (low radiated emissions)
Multi-Input Wake-up with optional interrupts
MICROWIRE/PLUS (Serial Peripheral Interface
Compatible)
Clock Doubler for 20 MHz operation from 10 MHz
Oscillator, with 0.5 s Instruction Cycle
Eleven multi-source vectored interrupts servicing:
- External Interrupt
- USART (2)
- Idle Timer T0
- Two Timers (each with 2 interrupts)
- MICROWIRE/PLUS Serial peripheral interface
- Multi-Input Wake-up
- Software Trap
Idle Timer with programmable interrupt interval
8-bit Stack Pointer SP (stack in RAM)
Two 8-bit Register Indirect Data Memory Pointers
True bit manipulation
WATCHDOG and Clock Monitor logic
Software selectable I/O options
- TRI-STATE Output/High Impedance Input
- Push-Pull Output
- Weak Pull Up Input
Schmitt trigger inputs on I/O ports
Temperature range: 0°C to +70°C and 40°C to +125°C
(COP8SCE9/SDE9)
 Packaging: 44 PLCC, 44 LLP and 48 TSSOP

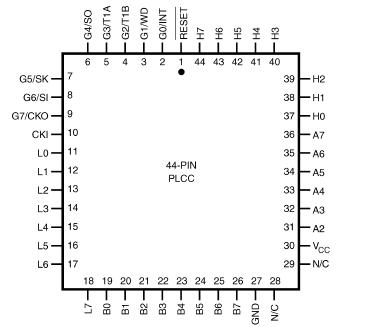

Pinout

Connection Diagram


Specifications

Supply Voltage (VCC)                        7V
Voltage at Any Pin                           −0.3V to VCC +0.3V
Total Current into VCC Pin (Source) 200 mA
Total Current out of GND Pin (Sink) 200 mA
Storage Temperature Range           −65°C to +140°C
ESD Protection Level                      2 kV (Human Body
Model)


Description

The COP8SBE9/SCE9/SDE9 Flash microcontrollers are highly integrated COP8™ Feature core devices, with 8k Flash memory and advanced features including Virtual EEPROM, High Speed Timers, USART, and Brownout Reset.

This single-chip CMOS device COP8SDE9 is suited for applications requiring a full featured, in-system reprogrammable controller with large memory and low EMI. The same device is used for development, pre-production and volume production with a range of COP8 software and hardware development tools.
