COP8SCR9

Features:

`32 kbytes Flash Program Memory with Security Feature
`Virtual EEPROM using Flash Program Memory
`1 kbyte volatile RAM
`USART with on chip baud generator
`2.7V5.5V In-System Programmability of Flash
`High endurance - 100k Read/Write Cycles
`Superior data retention - 100 years
`Dual Clock Operation with HALT/IDLE Power Save Modes
`Three 16-bit timers:
- Timers T2 and T3 can operate at high speed (50 ns resolution)
- Processor Independent PWM mode
- External Event counter mode
- Input Capture mode
`Brown-out Reset (COP8SBR9/SCR9)

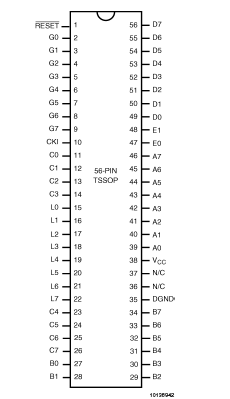

Pinout






Specifications

Supply Voltage (V_CC) 7V
Voltage at Any Pin −0.3V to VCC +0.3V
Total Current into V_CC Pin (Source) 200 mA
Total Current out of GND Pin (Sink) 200 mA
Storage Temperature Range −65°C to +140°C
ESD Protection Level 2 kV (Human Body Model)




Description

The COP8SBR9/SCR9/SDR9 Flash based microcontrollers are highly integrated COP8™ Feature core devices, with 32k Flash memory and advanced features including Virtual EEPROM, High Speed Timers, USART, and Brownout Reset.

This single-chip CMOS device COP8SCR9 is suited for applications requiring a full featured, in-system reprogrammable controller with large memory and low EMI. The same device is used for development, pre-production and volume production with a range of COP8 software and hardware development tools.
