COP8FG

Features:

Key Features
 Low cost 8-bit microcontroller
 Quiet Design (low radiated emissions)
 Multi-Input Wakeup pins with optional interrupts (8 pins)
 Mask selectable clock options
    - Crystal oscillator
    - Crystal oscillator option with on-chip bias resistor
    - External oscillator
    - Internal R/C oscillator
 Internal Power-On-Reset-user selectable
 WATCHDOG and Clock Monitor Logic-user selectable
 Eight high current outputs
 256 or 512 bytes on-board RAM
 8k to 32k ROM or OTP EPROM with security feature
CPU Features
 Versatile easy to use instruction set
 0.67 s instruction cycle time
 Fourteen multi-source vectored interrupts servicing
    - External interrupt / Timers T0 - T3
    - MICROWIRE/PLUS Serial Interface
    - Multi-Input Wake Up
    - Software Trap
    - USART (2; 1 receive and 1 transmit)
    - Default VIS (default interrupt)
 8-bit Stack Pointer SP (stack in RAM)
 Two 8-bit Register Indirect Data Memory Pointers
 True bit manipulation
 BCD arithmetic instructions
Peripheral Features
 Multi-Input Wakeup Logic
 Three 16-bit timers (T1 - T3), each with two 16-bit registers supporting:
    - Processor Independent PWM mode
    - External Event Counter mode
    - Input Capture mode
 Idle Timer (T0)
 MICROWIRE/PLUS Serial Interface (SPI Compatible)
 Full Duplex USART
 Two Analog Comparators
I/O Features
 Software selectable I/O options (TRI-STATE^®
    Output,Push-Pull Output, Weak Pull-Up Input, and High Impedance Input)
 Schmitt trigger inputs on ports G and L
 Eight high current outputs
 Packages: 28 SO with 24 I/O pins, 40 DIP with 36 I/O pins, 44 PLCC and PQFP with 40 I/O pins

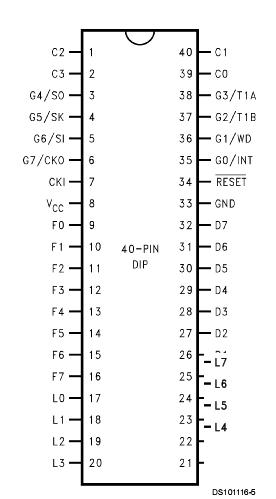

Pinout




Specifications

If Military/Aerospace specified devices are required, pleasecontacttheNationalSemiconductorSalesOffice/Distributors for availability and specifications.
Supply Voltage (V_CC )                                             7V
Voltage at Any Pin                         -0.3V to V_CC +0.3V
Total Current into V_CC
Pin (Source)                                                      100 mA
Total Current out of GND
Pin (Sink)                                                          110 mA
Storage Temperature
Range                                                  -65 to +140
ESD Protection Level             2kV (Human Body Model)

Note 2: Absolute maximum ratings indicate limits beyond which damage to the device may occur. DC and AC electrical specifications are not ensured when operating the device at absolute maximum ratings.


Description

Note: COP8FG devices are 15 MHz versions of the COP8SG devices.

The COP8FGx5 Family ROM based microcontrollers are highly integrated COP8(TM) Feature core devices with 8k to 32k memory and advanced features including Analog comparators, and zero external components. These single-chip CMOS devices are suited for more complex applications requiring a full featured controller with larger memory, low EMI, two comparators, and a full-duplex USART. COP8FGx7 devices are 100% form-fit-function compatible 8k or 32k OTP (One Time Programmable) versions for use in production or development.

Erasable windowed versions are available for use with a range of COP8 software and hardware development tools. COP8FG Family features include an 8-bit memory mapped architecture, 15 MHz CKI with 0.67 s instruction cycle, 14 interrupts, three multi-function 16-bit timer/counters with PWM, full duplex USART, MICROWIRE/PLUS(TM), two analog comparators, two power saving HALT/IDLE modes, MIWU, idle timer, on-chip R/C oscillator, high current outputs, user selectable options (WATCHDOG(TM), 4 clock/oscillator modes, power-on-reset), 4.5V to 5.5V operation, program code security, and 28/40/44 pin packages.

Devices included in this datasheet are:
