Features:

32 kbytes Flash Program Memory with Security Feature
Virtual EEPROM using Flash Program Memory
1 kbyte volatile RAM
10-bit Successive Approximation Analog to Digital Converter (up to 16 channels)
100% Precise Analog Emulation
USART with onchip baud generator
2.7V 5.5V In-System Programmability of Flash
High endurance -100k Read/Write Cycles
Superior Data Retention - 100 years
Dual Clock Operation with HALT/IDLE Power Save Modes
Three 16-bit timers:
- Timers T2 and T3 can operate at high speed (50 ns resolution)
- Processor Independent PWM mode
- External Event counter mode
- Input Capture mode




Pinout

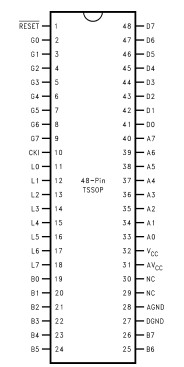

Connection Diagram




Specifications

Temperature Min -40 deg C
Temperature Max 125 deg C
Code Memory 32000 Bytes
Code Type Flash
RAM Size Bytes 1000 Bytes
I/O 37
Halt/Idle Yes
Wakeup Yes
TO Timer Yes
Supply Min 4.5 Volt
Supply Max 5.5 Volt
Interrupts 13
Power on Reset Yes
Watchdog/Clock Monitor Yes
With A/D 10 bits
Interface Type Microwire
USART Interface Yes
CAN No
With TempSensor No
View Using Catalog





Description

The COP8CBR/CCR/CDR9 Flash microcontrollers are highly integrated COP8™ Feature core devices, with 32k Flash memory and advanced features including Virtual EEPROM, A/D, High Speed Timers, USART, and Brownout Reset. This single-chip CMOS device is suited for applications requiring a full featured, in-system reprogrammable controller with large memory and low EMI. The same device is used for development, pre-production and volume production with a range of COP8 software and hardware development tools.

Device included in this datasheet:

Device Flash ProgramMemory(bytes) RAM (bytes) BrownoutVoltage I/OPins Packages Temperature
COP8CBR9 32k 1k 2.7V to 2.9V 37,39,49, 59 44 LLP, 44/68 PLCC, 48/56 TSSOP -40°C to +85°C
COP8CCR9 32k 1k 4.17V to 4.5V 37,39,49, 59 44 LLP, 44/68 PLCC, 48/56 TSSOP -40°C to +85°C -40°C to +125°C
COP8CDR9 32k 1k No Brownout 37,39,49, 59 44 LLP, 44/68 PLCC, 48/56 TSSOP -40°C to +85°C -40°C to +125°C

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
COP8CCR9HVA8 .5 0 13425 0 0 932500 4 264599421
COP8CCR9IMT7 .5 0 13425 0 0 932500 4 264599421
COP8CCR9IMT8 .5 0 13425 0 0 932500 4 264599421
COP8CCR9LVA7 .5 0 13425 0 0 932500 4 264599421

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.
