Product Details

Description



Pinout




Specifications

Temperature Min-40 deg C
Temperature Max125 deg C
Code Memory8000 Bytes
Code TypeFlash
RAM Size Bytes512 Bytes
I/O21
Halt/IdleYes
WakeupYes
TO TimerYes
Supply Min4.5 Volt
Supply Max5.5 Volt
Interrupts13
Power on ResetYes
Watchdog/Clock MonitorYes
With A/D10 bits
Interface TypeMicrowire
USART InterfaceYes
CANNo
With Comparators2
With TempSensorYes
View Using Catalog



Description

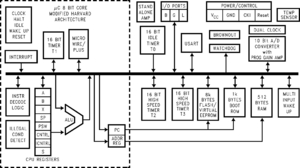

The COP8AME9 Flash microcontroller is a highly integrated COP8™ Feature core device, with 8k Flash memory and advanced features including Virtual EEPROM, dual Op Amps (one programmable gain), temperature sensor, A/D, High Speed Timers, USART, and Brownout Reset. The COP8AME9 has True In-System Programmable Flash memory with high-endurance (100k erase/write cycles), and is well suited for applications requiring real-time data collection and processing, multiple sensory interface, and remote monitoring. The same device is used for development, pre-production and volume production with a range of COP8 software and hardware development tools.

Device described in this datasheet:

Device FlashProgramMemory(bytes) RAM (bytes) BrownoutVoltage I/OPins Packages Temperature
COP8AME9 8k 512 4.17 to 4.5V 21 28 DIP/SOIC -40°C to +85°C

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
COP8AME9EMW8 .5 0 13425 0 0 932500 4 264599421

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.


Design Tools

Title Size in Kbytes Date
Tools for Evaluation, Design, and Programming" 240 Kbytes 12-Apr-2002 View Online Download
