COP888EB

Features: CAN bus interface, with Software Power save mode8-bit A/D Converter with 8 channelsFully buffered USARTMulti-input wake up (MIWU) on both Port L and MSPI Compatible Master/Slave InterfaceQuiet Design (Low Radiated Emissions)8096 bytes of on-board ROM192 bytes of on-board RAMApplication A...

product image

COP888EB Picture
See larger image
SeekIC No. : 004315352 Detail

COP888EB: Features: CAN bus interface, with Software Power save mode8-bit A/D Converter with 8 channelsFully buffered USARTMulti-input wake up (MIWU) on both Port L and MSPI Compatible Master/Slave InterfaceQ...

COP888EB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
COP888EB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CAN bus interface, with Software Power save mode
8-bit A/D Converter with 8 channels
Fully buffered USART
Multi-input wake up (MIWU) on both Port L and M
SPI Compatible Master/Slave Interface
Quiet Design (Low Radiated Emissions)
8096 bytes of on-board ROM
192 bytes of on-board RAM




Application

Automobile Body Control and Comfort System
Integrated Driver Informaiton Systems
Steering Wheel Control
Car Radio Control Panel
Sensor/Actuator Applications in Automotive and Industrial Control

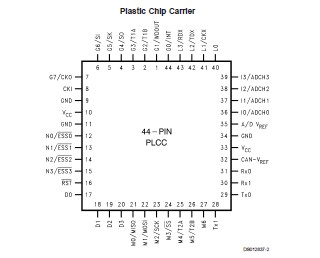

Pinout

Connection Diagram




Specifications

Supply Voltage (VCC) 6V
Voltage at Any Pin −0.3V to VCC +0.3V
Total Current into VCC Pins (Source) 90 mA
Total Current out of GND Pins (Sink)100 mA
Storage Temperature Range −65°C to +150°C

Temperature Min -40 deg C
Temperature Max 125 deg C
Code Memory 8000 Bytes
Code Type ROM
RAM Size Bytes 192 Bytes
Halt/Idle Yes
Wakeup Yes
TO Timer Yes
Supply Min 2.5 Volt
Supply Max 6 Volt
Interrupts 14
Power on Reset Yes
Watchdog/Clock Monitor Yes
With A/D 8 bits
Interface Type Microwire
USART Interface Yes
CAN Yes
With TempSensor No
View Using Catalog





Description

The COP888EB ROM based microcontrollers are highly integrated COP8™ Feature core devices with 8k memory and advanced features including a CAN 2.0B (passive) interface, A/D and USART. These single-chip CMOS devices are suited for applications requiring a full featured controller with a CAN interface, low EMI, and versatile communications interfaces. COP87L8EB/RB devices are pin and software compatible 16k or 32k OTP (One Time Programmable) versions for pre-production, and for use with a range of COP8 software and hardware development tools.

COP888EB Features include an 8-bit memory mapped architecture, 10 MHz CKI with 1s instruction cycle, two multi function 16-bit timer/counters, WATCHDOG™ and Clock Monitor, CAN 2.0B (passive) interface, MICROWIRE/PLUS™ serial I/O, SPI master/slave interface, fully buffered USART, 8-bit A/D with 8 channels, two power saving HALT/IDLE modes, MIWU, idle timer, software selectable I/O options, low EMI 4.5V to 5.5V operation, and 44/68 pin packages.
