COP888CL

Features:

`Two 16-bit timers, each with two 16-bit registers supporting:
Processor Independent PWM mode
External Event counter mode
Input Capture mode
`4 kbytes of on-chip ROM
`128 bytes of on-chip RAM




Pinout

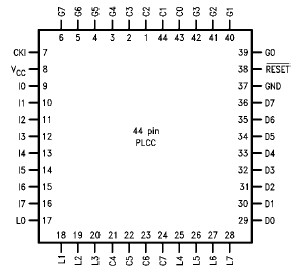

Specifications

Supply Voltage (V_CC) 7V
Voltage at Any Pin -0.3V to V_CC+ 0.3V
Total Current into VCC Pin (Source) 100 mA
Total Current out of GND Pin (Sink)110 mA
Storage Temperature Range-65 to +140

Temperature Min	-55 deg C
Temperature Max	125 deg C
Code Memory	4000 Bytes
Code Type	ROM
RAM Size Bytes	128 Bytes
Halt/Idle	Yes
Wakeup	Yes
TO Timer	Yes
Supply Min	2.5 Volt
Supply Max	6 Volt
Interrupts	9
Power on Reset	No
Watchdog/Clock Monitor	Yes
Interface Type	Microwire
USART Interface	No
CAN	No
With TempSensor	No
View Using Catalog

Description

The COP888 family of microcontrollers uses an 8-bit single chip core architecture fabricated with National Semiconductor's M2CMOSTM process technology. The COP888CL is a member of this expandable 8-bit core processor family of microcontrollers. (Continued)

The following part numbers are pin count and temperature variations of the COP888CL: COP688CL, COP684CL, COP884CL, COP988CL, COP984CL.

The COP888 family of microcontrollers uses an 8-bit single chip core architecture fabricated with National Semiconductor's M²CMOS™ process technology. The COP888CL is a member of this expandable 8-bit core processor family of microcontrollers.

COP888CL is a fully static part, fabricated using double-metal silicon gate microCMOS technology. Features include an 8-bit memory mapped architecture, MICROWIRE/PLUS serial I/O, two 16-bit timer/counters supporting three modes (Processor Independent PWM generation, External Event counter, and Input Capture mode capabilities), and two power savings modes (HALT and IDLE), both with a multisourced wakeup/interrupt capability. This multi-sourced interrupt capability may also be used independent of the HALT or IDLE modes. Each I/O pin has software selectable configurations. The device operates over a voltage range of 2.5V to 6V. High throughput is achieved with an efficient, regular instruction set operating at a maximum of 1 µs per instruction rate.
