Features: Key Features
` CAN 2.0B (passive) bus interface, with Software Power save mode
` 8-bit A/D Converter with 8 channels
` Fully buffered USART
` Multi-input wake up (MIWU) on both Port L and M
` SPI Compatible Master/Slave Interface
`16 or 32 kbytes of on-board OTP EPROM with security feature
Note: Mask ROMed device with equivalent on-chip features and program memory size of 8k is available.
` 192 bytes of on-board RAM
Additional Peripheral Features
` Idle timer (programmable)
` Two 16-bit timer, with two 16-bit registers supporting
- Processor independent PWM mode
- External Event counter mode
- Input capture mode
` WATCHDOG™ and Clock Monitor
` MICROWIRE/PLUS serial I/O
I/O Features
` Software selectable I/O options (TRI-STATE® outputs, Push pull outputs, Weak pull up input, High impedance input)
` Schmitt trigger inputs on Port G, L and M
` Packages: 44 PLCC with 35 I/O pins; 68 PLCC with 58 I/O pins
CPU/Instruction Set Features
` 1 s instruction cycle time
` Fourteen multi-sourced vectored interrupts servicing
- External interrupt
- Idle Timer T0
- Timers (T1 and T2) (4 Interrupts)
- MICROWIRE/PLUS and SPI
- Multi-input Wake up
- Software Trap
- CAN interface (3 interrupts)
- USART (2 Inputs)
` Versatile easy to use instruction set
` 8-bit stacker pointer (SP) (Stack in RAM)
` Two 8-bit RegisterR Indirect Memory Pointers (B, X)Application·Automobile Body Control and Comfort System
· Integrated Driver Informaiton Systems
· Steering Wheel Control
· Car Radio Control Panel
· Sensor/Actuator Applications in Automotive and Industrial Control

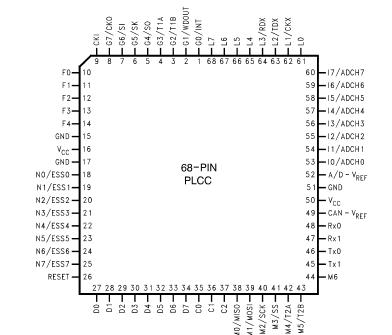

Pinout
SpecificationsIf Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (VCC) .................................................6V
Voltage at Any Pin ..........................−0.3V to VCC +0.3V
Total Current into VCC Pins (Source) ....................90 mA
Total Current out of GND Pins (Sink) ..................100 mA
Storage Temperature Range ...............−65 to +150
Note 1: Absolute maximum ratings indicate limits beyond
which damage to the device may occur. DC and AC electrical
specifications are not ensured when operating the device at
absolute maximum ratings.DescriptionThe COP87L88EB/RB Family OTP (One Time programmable) microcontrollers are highly integrated COP8™ Feature core devices with 16k or 32k memory and advanced features including a CAN 2.0B (passive) interface, A/D and USART. These multi-chip CMOS devices are suited for applications requiring a full featured controller with a CAN interface, low EMI, and versatile communications interfaces, and as pre-production devices for ROM designs. Pin and software compatible 8k ROM versions (COP888EB) are available as well as a range of COP8 software and hardware development tools.
Features of COP87L88EB include an 8-bit memory mapped architecture, 10 MHz CKI (-XE = crystal oscillator) with 1s instruction cycle, two multi-function 16-bit timer/counters, WATCHDOG and clock monitor, idle timer, CAN 2.0B (passive) interface, MICROWIRE/PLUS™ serial I/O, SPI master/slave interface, fully buffered USART, 8 bit A/D with 8 channels, two power saving HALT/IDLE modes, MIWU, software selectable I/O options, low EMI 4.5V to 5.5V operation, program code security, and 44/68 pin packages.
Note: A companion device with CAN interface, less I/O and memory, A/D, and PWM timer is the COP87L84BC.
COP87L88EB Data Sheet
