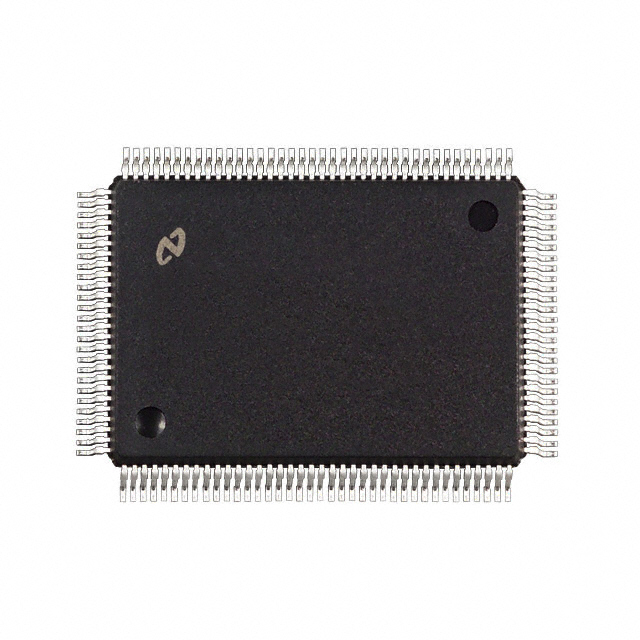

CLC5902VLA

The CLC5902VLA is one member of the CLC-DRCS-PCASM family which is designed to support simple and effective evaluation of the Diversity Receiver Chipset (DRCS). This device accepts narrowband signals at IF frequencies up to 300MHz and outputs quadrature baseband signals in a digital format. The datasheet of this document describes in detail the DRCS Board, DRCS Control Panel software, and how to use it.

Required evaluation items of the CLC5902VLA are:(1)DRCS board (CLC-DRCS-PCASM); (2)+5V power supply; (3)signal generator; (4)drcs control panel software (drcscp.exe); (5)PC running Windows 95/98/NT; (6)one PC serial port. And the suggested evaluation items are:(1)data capture board (CLC-CAPT-PCASM); (2)data capture board software (capture.exe); (3)data capture board user's guide; (4)second PC serial port; (5)matlab software or other data analysis software. If you want to know more information such as the electrical characteristics about the CLC5902VLA, please download the datasheet in www.seekic.com or www.chinaicmart.com .
