Features: 160MHz, -3dB bandwidth
2000V/µsec slew rate
0.04% signal nonlinearity at 4Vpp output
-43dB feedthrough at 30MHz
User adjustable gain range
Differential voltage input and
single-ended voltage outputApplicationWide-bandwidth AGC systems
Automatic signal-leveling
Video signal processing
Voltage controlled filters
Differential amplifier
Amplitude modulationSpecifications

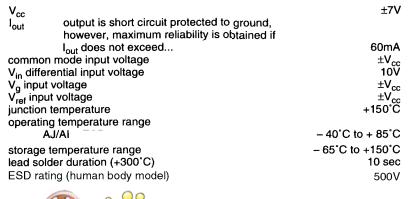

| Gain Adjust Range |
40 dB |
| Analog Control BW |
100 MHz |
| Signal Channel BW |
160 MHz |
| Supply Min |
10 Volt |
| Supply Max |
14 Volt |
| Gain Control Interface |
Voltage |
| Slew Rate |
2000 Volts/usec |
| Supply Current |
28 mA |
| Output Current |
70 mA |
| Offset Voltage max, 25C |
120 mV |
| Max Input Bias Current |
61000 nA |
| Voltage Noise |
60 nV/root(Hz) |
| HD 2nd |
-47 dB |
| HD 3rd |
-60 dB |
| Diff Gain |
.15 dB |
| Diff Phase |
.15 % |
| Special Features |
Differential Input |
| Function |
VGA |
| Temperature Min |
-40 deg C |
| Temperature Max |
85 deg C |
| View Using Catalog |
DescriptionThe CLC520 is a wideband DC-coupled amplifier with voltage controlled gain (AGC). The amplifier has a high impedance, differential signal input; a high bandwidth, gain control input; and a single-ended voltage output. Signal channel performance is outstanding with 160MHz small signal bandwidth, 0.5 degree linear phase deviation (to 60MHz) and 0.04% signal nonlinearity at 4VPP output.
Gain control is very flexible and easy to use. Maximum gain may be set over a nominal range of 2 to 100 with one external resistor. In addition, the gain control input provides more than 40dB of voltage controlled gain adjustment from the maximum gain setting. For example, a CLC520 may be set for a maximum gain of 2 (or 6dB) for a voltage controlled gain range from 40dB to less than 34dB. Alternatively, the CLC520 could be set for a maximum gain of 100 or (40dB) for a voltage controlled gain range from 40dB to less than 0dB.
The gain control bandwidth of 100MHz is superb for AGC/ALC loop stabilization. And since the gain is minimum with a zero volt input and maximum with a +2 volt input, driving the control input is easy.
Finally, the CLC520 differential inputs, and ground referenced voltage output take the trouble out of designing DC-coupled AGC circuits for display normalizers; signal leveling automatic circuits; etc.
Enhanced Solutions (Military/Aerospace)
SMD Number: 5962-91694
Space level versions also available.
For more information, visit http://www.national.com/mil
