CLC533

12-bit settling (0.01%) 17ns
Low noise42mVrms
Isolation80dB @ 10MHz
110MHz -3dB bandwidth (Av = +2)
Low distortion80dB @ 5MHz
Adjustable bandwidth180MHz (max)

Infrared system multiplexing
CCD sensor signals
Radar I/Q switching
High definition video HDTV
Test and calibration

positive supply voltage (+Vcc)                                                                -0.5V to +7.0V
negative supply voltage (-Vee)                                                               +0.5V to -7.0V
differential voltage between any two GND,s                                                       200mV
analog input voltage range                                                                        -Vee to +Vcc
digital input voltage range                                                                          -Vee to +Vcc
output short circuit duration (shorted to GND)                                                     Infinite
junction temperature                                                                                            +150
operating temperature range
CLC533AJP/AJE/AIB                                                                                   -40 to +85
storage temperature range                                                                      -65to +150
lead solder duration (+300)                                                                                10 sec
ESD rating (human body model)                                                                             <500V

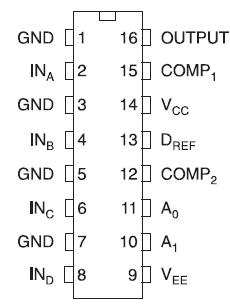

The CLC533 is a high-speed 4:1 multiplexer employing active input and output stages. The CLC533 also employs a closed-loop design which dramatically improves accuracy over conventional analog multiplexer circuits. This monolithic device is constructed using an advanced high-performance bipolar process.

The CLC533 has been specifically designed to provide a 24ns settling time to 0.01%. This coupled with the adjustable bandwidth, makes the CLC533 an ideal choice for infrared and CCD
imaging systems, with channel-to-channel isolation of 80dB @ 10MHz. Low distortion and spurious signal levels (-80dBc) make the CLC533 a very suitable choice for I/Q processors in radar
receivers.

The CLC533 is offered over both the industrial and military temperature ranges. The industrial versions, CLC533AJP\AJE\AIB, are specified from -40°C to +85°C and are packaged in 16-pin
plastic DIPs, SOIC's and CERDIP packages. The extended temperature versions, CLC533A8B/A8L-2A, are specified from -55 to +125and are packaged in 16-pin CERDIP and 20-terminal
LCC packages.
