CGY2105ATS

Features:

·Dual Low Noise Amplifier (LNA) Monolithic Microwave Integrated Circuit (MMIC)
·Typical noise figure of 0.55 dB
·Typical gain of 16.3 dB at 1810 MHz
·Input IP3 of 13.5 dBm at 1810 MHz
·Low current of 58 mA at 2.5 V for each channel
·Low cost SSOP16 plastic package.


Application

DCS1800
PCS1900

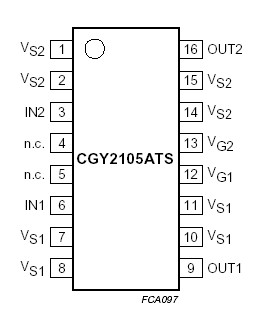

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	TYP.	MAX.	UNIT
VDS	drain-source voltage		-	-	UNIT	V
VGS	gate-source voltage		-3	-	+1	V
VDG	drain-gate voltage		-	-	7	V
Vsupply	positive supply voltage	see Chapter "Application and test information"	-	-	6	V
Vneg	negative supply voltage	see Chapter "Application and test information"	-6	-	-	V
Tamb	ambient temperature		-40	-	+85
Tj	junction temperature		-	-	150
Tstg	storage temperature		-	-	150
Ptot	total power dissipation	Tamb < 85	-	-	430	mW

Description

The CGY2105 is a dual Gallium Arsenide (GaAs) MMIC amplifier designed for use in very low noise figure applications, where high linearity is also required.

Excellent tracking between the two amplifiers is obtained. Gain and noise figure variations with temperature are very small.
CGY2105ATS is suitable for use in DCS1800 and PCS1900 base station applications.

CGY2105ATS also provides high gain and very low noise performance at frequencies between 1.0 and 2.5 GHz, as used in Wireless Local Area Network (WLAN) applications.

A rematching of the application board CGY2105ATS might be necessary for optimum performance.
