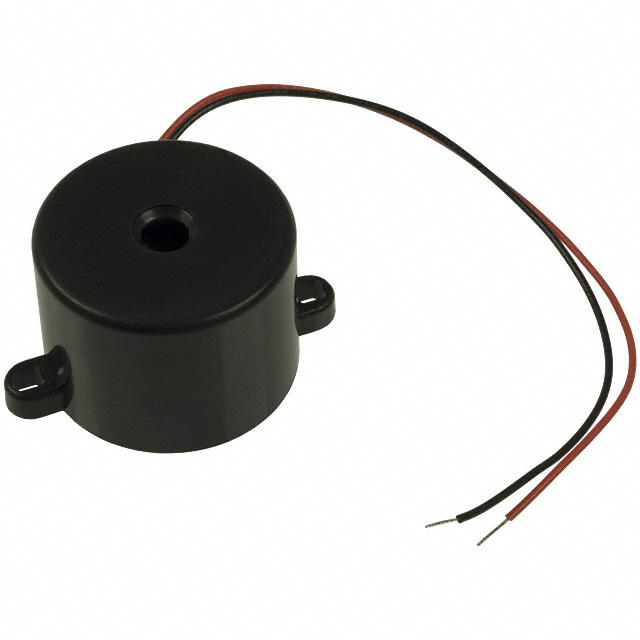

CEP-2280: BUZZER PIEZO 12VDC 32MM FLANGE

CEP-2280 Data Sheet

US $ 1.58~4.07 / Piece | Get Latest Price

Part Number:: CEP-2280
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$4.07
$3.16
$2.41
$1.93
$1.71
$1.58

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/6/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CEP-1106 evaluate
US $.91 - 2.07 / Piece

BUZZER PIEZO 2.4KHZ EXT DRIVE
CEP-1108 evaluate
US $.5 - 1.25 / Piece

BUZZER PIEZO 2.5KHZ EXT DRIVE
CEP-1109 evaluate
BUZZER PIEZO 2.5KHZ EXT DRIVE

Product Details

Quick Details

Series:	CEP	Manufacturer:	CUI Inc
Driver Circuitry:	Indicator, Internally Driven	Technology:	Piezo
Input Type:	DC	Voltage - Rated:	12VDC
Voltage Range:	6 ~ 18V	Frequency:	2.5kHz ~ 3.8kHz
Operating Mode:	High, Low	Sound Pressure Level:	88dB @ 12V, 30cm
Dimensions :	6.5 mm x 9 mm x 1.8 mm	Current - Supply:	17mA
Washable:	No	Mounting Type:	Chassis Mount
Termination:	Wire Leads	Size / Dimension:	Circular - 32.00mm Dia x 23.50mm H

Description

Technology: Piezo
Washable: No
Packaging: Bulk
Manufacturer: CUI Inc
Termination: Wire Leads
Driver Circuitry: Indicator, Internally Driven
Input Type: DC
Voltage - Rated: 12VDC
Mounting Type: Chassis Mount
Series: CEP
Voltage Range: 6 ~ 18V
Sound Pressure Level: 88dB @ 12V, 30cm
Frequency: 2.5kHz ~ 3.8kHz
Operating Mode: High, Low
Current - Supply: 17mA
Size / Dimension: Circular - 32.00mm Dia x 23.50mm H

Specifications

resonant frequency: 2.5-3.8kHz ±0.5

operating voltage: 6-18 Vdc

current consumption: 17mA

sound pressure level: 88dB

rated voltage: 12 Vdc

operating temperature: -20 to +60°C

storage temperature: -30 to +70°C

diameter: 32.0 mm

depth: 23.0 mm

weight: 13.2 grams

termination: wire leads

Parameters:

Technical/Catalog Information	CEP-2280
Vendor	CUI Inc
Category	Audio Products
Type	Piezo Indicator, Internal Drive
Sound Pressure Level	88dB
Mounting Type	Flange Mount
Capacitance @ Frequency	-
Frequency	2.5kHz ~ 3.8kHz
Packaging	Bulk
Operating Mode	Continuous
Voltage Range	6~18VDC
Voltage - Rated	12VDC
Current Rating	17mA
Size / Dimension	Circular - 32mm Dia x 23mm H
Termination	Wire Leads
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	CEP 2280 CEP2280 102 1121 ND 1021121ND 102-1121
