CEP-1106

BUZZER PIEZO 2.4KHZ EXT DRIVE

product image

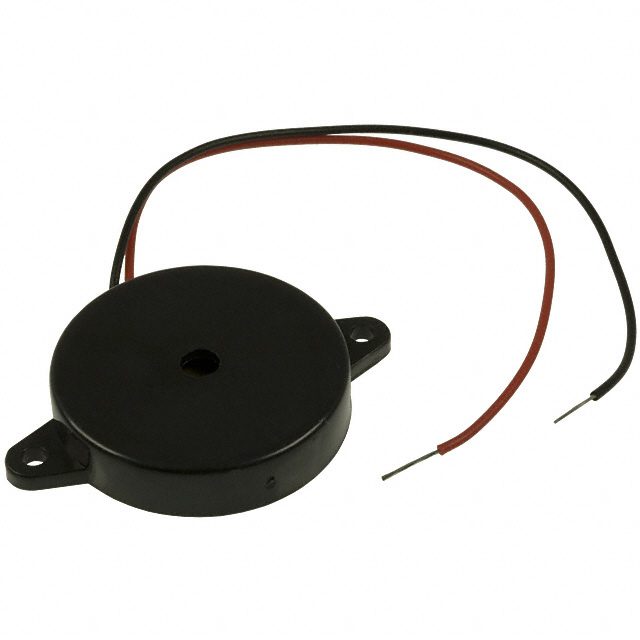

CEP-1106 Picture
See larger image
SeekIC No. : 002845388 Detail

CEP-1106: BUZZER PIEZO 2.4KHZ EXT DRIVE

CEP-1106 Data Sheet

floor Price/Ceiling Price

US $ .91~2.07 / Piece | Get Latest Price
Part Number:
CEP-1106
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $2.07
  • $1.71
  • $1.29
  • $1.07
  • $.95
  • $.91
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CEP Manufacturer: CUI Inc
Driver Circuitry: Transducer, Externally Driven Technology: Piezo
Input Type: peak-peak Signal Voltage - Rated: 10Vp-p
Voltage Range: 30V (Max) Frequency: 2.4kHz
Operating Mode: Continuous Sound Pressure Level: 88dB @ 10V, 10cm
Dimensions : 6.5 mm x 9 mm x 1.8 mm Current - Supply: 18mA
Washable: No Mounting Type: Through Hole
Termination: PC Pins Size / Dimension: Circular - 22.80mm Dia x 14.00mm H

Description

Driver Circuitry: Transducer, Externally Driven
Technology: Piezo
Voltage Range: 30V (Max)
Operating Mode: Continuous
Washable: No
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Manufacturer: CUI Inc
Input Type: peak-peak Signal
Frequency: 2.4kHz
Voltage - Rated: 10Vp-p
Sound Pressure Level: 88dB @ 10V, 10cm
Series: CEP
Current - Supply: 18mA
Size / Dimension: Circular - 22.80mm Dia x 14.00mm H


Specifications

  • recommended circuits: click here
  • operating voltage: 30Vp-p
  • current consumption: 18mA
  • sound pressure level: 88dB
  • electrostatic capacity: 80,000 ±30%
  • operating temperature: -30 to+85°C
  • storage temperature: -40 to+95°C
  • diameter: 22.8 mm
  • depth: 13.5 mm
  • weight: 11.6 grams
  • termination: PC pins



    • Parameters:

    Technical/Catalog InformationCEP-1106
    VendorCUI Inc
    CategoryAudio Products
    TypePiezo Transducer, External Drive
    Sound Pressure Level88dB
    Mounting TypeThrough Hole
    Capacitance @ Frequency80000pF @ 1kHz
    Frequency-
    PackagingBulk
    Operating ModeContinuous
    Voltage Range30Vp-p (max)
    Voltage - Rated 10Vp-p
    Current Rating18mA
    Size / DimensionCircular - 22.8mm Dia x 13.5mm H
    TerminationSolder Pins/Posts
    Capacitance*
    Adjustment Type*
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CEP 1106
    CEP1106
    102 1137 ND
    1021137ND
    102-1137
