SeekIC No. : 002845566 Detail

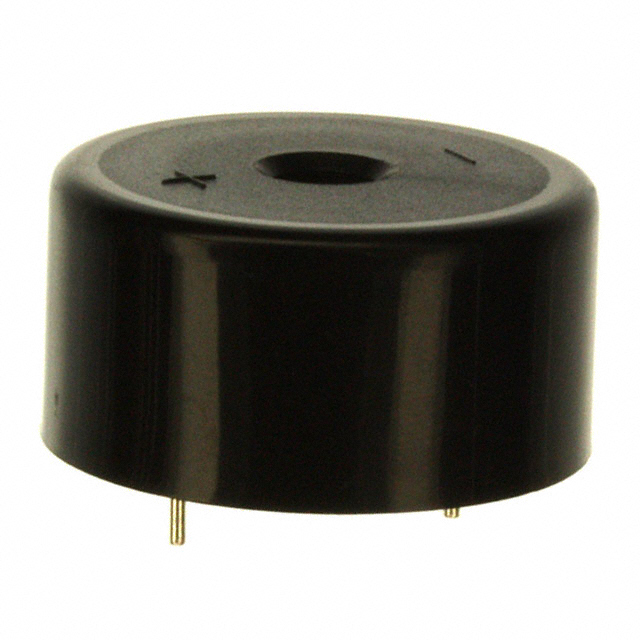

CEP-2272A: BUZZER PIEZO 12VDC 31.3MM PCMNT

CEP-2272A Data Sheet

US $ 1.12~2.54 / Piece | Get Latest Price

Part Number:: CEP-2272A
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$2.54
$2.1
$1.58
$1.31
$1.17
$1.12

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CEP-1106 evaluate
US $.91 - 2.07 / Piece

BUZZER PIEZO 2.4KHZ EXT DRIVE
CEP-1108 evaluate
US $.5 - 1.25 / Piece

BUZZER PIEZO 2.5KHZ EXT DRIVE
CEP-1109 evaluate
BUZZER PIEZO 2.5KHZ EXT DRIVE

Product Details

Quick Details

Series:	CEP	Manufacturer:	CUI Inc
Driver Circuitry:	Indicator, Internally Driven	Technology:	Piezo
Input Type:	DC	Voltage - Rated:	12VDC
Voltage Range:	3 ~ 20V	Frequency:	3.5kHz
Operating Mode:	Continuous	Sound Pressure Level:	93dB @ 12V, 30cm
Dimensions :	6.5 mm x 9 mm x 1.8 mm	Current - Supply:	10mA
Washable:	No	Mounting Type:	Through Hole
Termination:	PC Pins	Size / Dimension:	Circular - 31.30mm Dia x 16.50mm H

Description

Technology: Piezo
Operating Mode: Continuous
Washable: No
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Manufacturer: CUI Inc
Driver Circuitry: Indicator, Internally Driven
Input Type: DC
Voltage - Rated: 12VDC
Series: CEP
Current - Supply: 10mA
Voltage Range: 3 ~ 20V
Frequency: 3.5kHz
Sound Pressure Level: 93dB @ 12V, 30cm
Size / Dimension: Circular - 31.30mm Dia x 16.50mm H

Specifications

resonant frequency: 3.5kHz ±0.5

operating voltage: 3-20 Vdc

current consumption: 10mA

sound pressure level: 93dB

rated voltage: 12 Vdc

operating temperature: -30 to +85°C

storage temperature: -40 to +95°C

diameter: 31.3 mm

depth: 16.0 mm

weight: 7.0 grams

termination: PC pins

Parameters:

Technical/Catalog Information	CEP-2272A
Vendor	CUI Inc
Category	Audio Products
Type	Piezo Indicator, Internal Drive
Sound Pressure Level	93dB
Mounting Type	Through Hole
Capacitance @ Frequency	-
Frequency	3.5kHz
Packaging	Bulk
Operating Mode	Continuous
Voltage Range	3 ~ 20VDC
Voltage - Rated	12VDC
Current Rating	10mA
Size / Dimension	Circular - 31.3mm Dia x 16mm H
Termination	Solder Pins/Posts
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CEP 2272A CEP2272A 102 1118 ND 1021118ND 102-1118
