CEP-2260A

BUZZER PIEZO 12VDC 32MM FLANGE

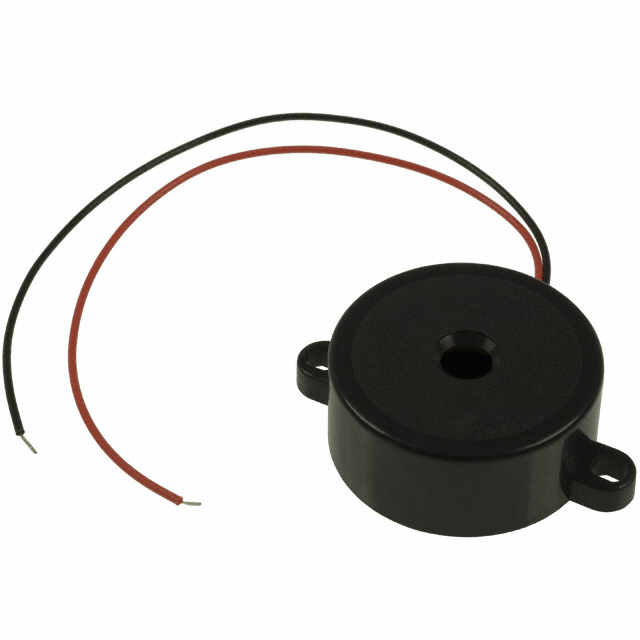

product image

CEP-2260A Picture
See larger image
SeekIC No. : 002845565 Detail

CEP-2260A: BUZZER PIEZO 12VDC 32MM FLANGE

CEP-2260A Data Sheet

floor Price/Ceiling Price

US $ 1.05~2.38 / Piece | Get Latest Price
Part Number:
CEP-2260A
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $2.38
  • $1.97
  • $1.48
  • $1.23
  • $1.09
  • $1.05
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CEP Manufacturer: CUI Inc
Driver Circuitry: Indicator, Internally Driven Technology: Piezo
Input Type: DC Voltage - Rated: 12VDC
Voltage Range: 3 ~ 20V Frequency: 3.5kHz
Operating Mode: Continuous Sound Pressure Level: 93dB @ 12V, 30cm
Dimensions : 6.5 mm x 9 mm x 1.8 mm Current - Supply: 10mA
Washable: No Mounting Type: Chassis Mount
Termination: Wire Leads Size / Dimension: Circular - 32.00mm Dia x 14.00mm H

Description

Technology: Piezo
Operating Mode: Continuous
Washable: No
Packaging: Bulk
Manufacturer: CUI Inc
Termination: Wire Leads
Driver Circuitry: Indicator, Internally Driven
Input Type: DC
Voltage - Rated: 12VDC
Mounting Type: Chassis Mount
Series: CEP
Current - Supply: 10mA
Voltage Range: 3 ~ 20V
Frequency: 3.5kHz
Sound Pressure Level: 93dB @ 12V, 30cm
Size / Dimension: Circular - 32.00mm Dia x 14.00mm H


Specifications

  • resonant frequency: 3.5kHz ±0.5
  • operating voltage: 3-20 Vdc
  • current consumption: 10mA
  • sound pressure level: 93dB
  • rated voltage: 12 Vdc
  • operating temperature: -30 to +85°C
  • storage temperature: -40 to +95°C
  • diameter: 32.0 mm
  • depth: 13.5 mm
  • weight: 7.7 grams
  • termination: wire leads



    • Parameters:

    Technical/Catalog InformationCEP-2260A
    VendorCUI Inc
    CategoryAudio Products
    TypePiezo Indicator, Internal Drive
    Sound Pressure Level93dB
    Mounting TypeFlange Mount
    Capacitance @ Frequency-
    Frequency3.5kHz
    PackagingBulk
    Operating ModeContinuous
    Voltage Range3 ~ 20VDC
    Voltage - Rated 12VDC
    Current Rating10mA
    Size / DimensionCircular - 32mm Dia x 13.5mm H
    TerminationWire Leads
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CEP 2260A
    CEP2260A
    102 1120 ND
    1021120ND
    102-1120
