CEP-2242

BUZZER PIEZO 12VDC 13.7MM PCMNT

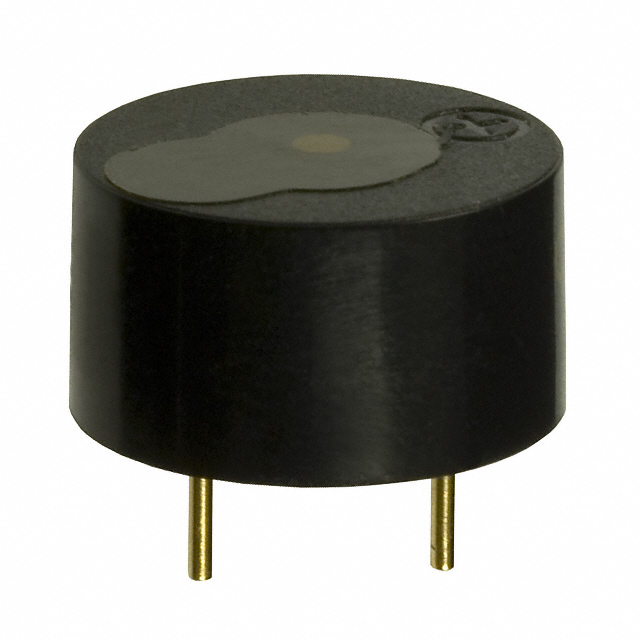

product image

CEP-2242 Picture
See larger image
SeekIC No. : 002845563 Detail

CEP-2242: BUZZER PIEZO 12VDC 13.7MM PCMNT

CEP-2242 Data Sheet

floor Price/Ceiling Price

US $ .84~1.91 / Piece | Get Latest Price
Part Number:
CEP-2242
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $1.91
  • $1.58
  • $1.19
  • $.99
  • $.88
  • $.84
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: CEP Manufacturer: CUI Inc
Driver Circuitry: Indicator, Internally Driven Technology: Piezo
Input Type: DC Voltage - Rated: 12VDC
Voltage Range: 3 ~ 16V Frequency: 4.1kHz
Operating Mode: Continuous Dimensions : 6.5 mm x 9 mm x 1.8 mm
Sound Pressure Level: 70dB @ 12V, 30cm Current - Supply: 7mA
Washable: Yes Mounting Type: Through Hole
Termination: PC Pins Size / Dimension: Circular - 13.70mm Dia x 8.10mm H

Description

Technology: Piezo
Operating Mode: Continuous
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Manufacturer: CUI Inc
Washable: Yes
Frequency: 4.1kHz
Driver Circuitry: Indicator, Internally Driven
Input Type: DC
Voltage - Rated: 12VDC
Series: CEP
Current - Supply: 7mA
Voltage Range: 3 ~ 16V
Sound Pressure Level: 70dB @ 12V, 30cm
Size / Dimension: Circular - 13.70mm Dia x 8.10mm H


Specifications

  • resonant frequency: 4.1kHz ±0.5
  • operating voltage: 3-16 Vdc
  • current consumption: 7mA
  • sound pressure level: 70dB
  • rated voltage: 12 Vdc
  • operating temperature: -20 to +70°C
  • storage temperature: -30 to +80°C
  • diameter: 13.7 mm
  • depth: 7.6 mm
  • weight: 1.0 grams
  • termination: PC pins



    • Parameters:

    Technical/Catalog InformationCEP-2242
    VendorCUI Inc
    CategoryAudio Products
    TypePiezo Indicator, Internal Drive
    Sound Pressure Level70dB
    Mounting TypeThrough Hole
    Capacitance @ Frequency-
    Frequency4.1kHz
    PackagingBulk
    Operating ModeContinuous
    Voltage Range3 ~ 16VDC
    Voltage - Rated 12VDC
    Current Rating7mA
    Size / DimensionCircular - 13.7mm Dia x 7.6mm H
    TerminationSolder Pins/Posts
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names CEP 2242
    CEP2242
    102 1115 ND
    1021115ND
    102-1115
