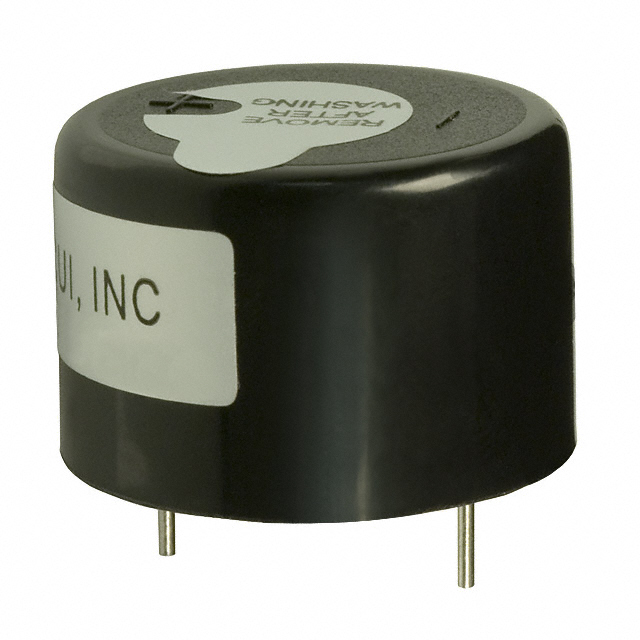

See larger image

SeekIC No. : 002845561 Detail

CEP-2202AS: BUZZER PIEZO 12VDC 24.2MM PCMNT

CEP-2202AS Data Sheet

US $ 1.19~2.7 / Piece | Get Latest Price

Part Number:: CEP-2202AS
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$2.7
$2.23
$1.67
$1.4
$1.24
$1.19

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CEP-1106 evaluate
US $.91 - 2.07 / Piece

BUZZER PIEZO 2.4KHZ EXT DRIVE
CEP-1108 evaluate
US $.5 - 1.25 / Piece

BUZZER PIEZO 2.5KHZ EXT DRIVE
CEP-1109 evaluate
BUZZER PIEZO 2.5KHZ EXT DRIVE

Product Details

Quick Details

Series:	CEP	Manufacturer:	CUI Inc
Driver Circuitry:	Indicator, Internally Driven	Technology:	Piezo
Input Type:	DC	Voltage - Rated:	12VDC
Voltage Range:	3 ~ 20V	Frequency:	3kHz
Operating Mode:	Continuous	Dimensions :	6.5 mm x 9 mm x 1.8 mm
Sound Pressure Level:	85dB @ 12V, 30cm	Current - Supply:	11mA
Washable:	Yes	Mounting Type:	Through Hole
Termination:	PC Pins	Size / Dimension:	Circular - 24.20mm Dia x 16.50mm H

Description

Technology: Piezo
Operating Mode: Continuous
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Manufacturer: CUI Inc
Washable: Yes
Current - Supply: 11mA
Driver Circuitry: Indicator, Internally Driven
Input Type: DC
Voltage - Rated: 12VDC
Series: CEP
Frequency: 3kHz
Voltage Range: 3 ~ 20V
Sound Pressure Level: 85dB @ 12V, 30cm
Size / Dimension: Circular - 24.20mm Dia x 16.50mm H

Specifications

resonant frequency: 3.0 kHz± 0.5

operating voltage: 3-20 Vdc

current consumption: 11mA

sound pressure level: 85dB

rated voltage: 12 Vdc

operating temperature: -30 to +85°C

storage temperature: -40 to +95°C

diameter: 24.2 mm

depth: 16.0 mm

weight: 5.0 grams

termination: PC pins

Parameters:

Technical/Catalog Information	CEP-2202AS
Vendor	CUI Inc
Category	Audio Products
Type	Piezo Indicator, Internal Drive
Sound Pressure Level	85dB
Mounting Type	Through Hole
Capacitance @ Frequency	-
Frequency	3kHz
Packaging	Bulk
Operating Mode	Continuous
Voltage Range	3 ~ 20VDC
Voltage - Rated	12VDC
Current Rating	11mA
Size / Dimension	Circular - 24.2mm Dia x 16mm H
Termination	Solder Pins/Posts
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CEP 2202AS CEP2202AS 102 1117 ND 1021117ND 102-1117
