CEP-1153, US $ .49-1.24, CEP-1153 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 002844764 Detail

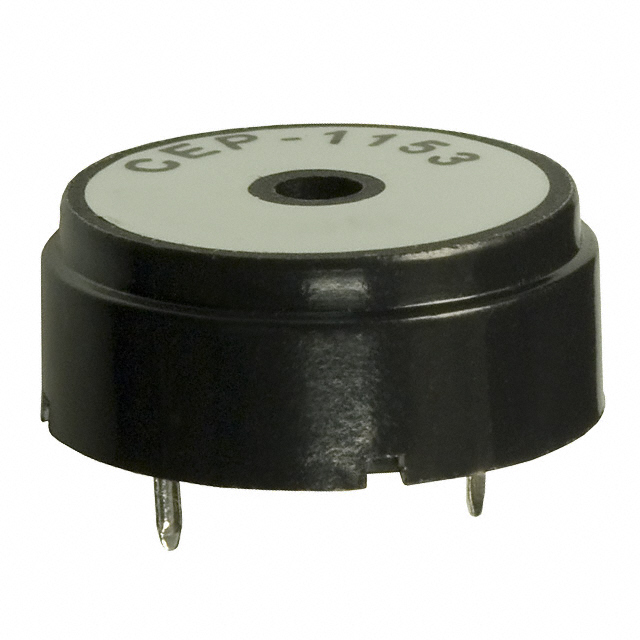

CEP-1153: BUZZER PIEZO 4KHZ 17MM EXT DRIVE

CEP-1153 Data Sheet

US $ .49~1.24 / Piece | Get Latest Price

Part Number:: CEP-1153
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$1.24
$1.03
$.76
$.61
$.55
$.49

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CEP-1106 evaluate
US $.91 - 2.07 / Piece

BUZZER PIEZO 2.4KHZ EXT DRIVE
CEP-1108 evaluate
US $.5 - 1.25 / Piece

BUZZER PIEZO 2.5KHZ EXT DRIVE
CEP-1109 evaluate
BUZZER PIEZO 2.5KHZ EXT DRIVE

Product Details

Quick Details

Series:	CEP	Manufacturer:	CUI Inc
Driver Circuitry:	Transducer, Externally Driven	Technology:	Piezo
Input Type:	peak-peak Signal	Voltage - Rated:	10Vp-p
Voltage Range:	30V (Max)	Frequency:	4kHz
Operating Mode:	Continuous	Dimensions :	6.5 mm x 9 mm x 1.8 mm
Sound Pressure Level:	82dB @ 10V, 10cm	Current - Supply:	7mA
Washable:	No	Mounting Type:	Through Hole
Termination:	PC Pins	Size / Dimension:	Circular - 17.00mm Dia x 8.10mm H

Description

Driver Circuitry: Transducer, Externally Driven
Technology: Piezo
Voltage Range: 30V (Max)
Frequency: 4kHz
Operating Mode: Continuous
Washable: No
Mounting Type: Through Hole
Termination: PC Pins
Packaging: Bulk
Manufacturer: CUI Inc
Input Type: peak-peak Signal
Voltage - Rated: 10Vp-p
Series: CEP
Sound Pressure Level: 82dB @ 10V, 10cm
Current - Supply: 7mA
Size / Dimension: Circular - 17.00mm Dia x 8.10mm H

Specifications

recommended circuits: click here

operating voltage: 30Vp-p

current consumption: 7mA

sound pressure level: 82dB

electrostatic capacity: 14,000 ±30%

operating temperature: -30 to +105°C

storage temperature: -40 to +105°C

dimensions: 17.0 mm

depth: 7.6 mm

weight: 3.4 grams

termination: PC pins

Parameters:

Technical/Catalog Information	CEP-1153
Vendor	CUI Inc
Category	Audio Products
Type	Piezo Transducer, External Drive
Sound Pressure Level	82dB
Mounting Type	Through Hole
Capacitance @ Frequency	14000pF @ 1kHz
Frequency	4kHz
Packaging	Bulk
Operating Mode	Continuous
Voltage Range	30Vp-p (max)
Voltage - Rated	10Vp-p
Current Rating	7mA
Size / Dimension	Circular - 17mm Dia x 7.6mm H
Termination	Solder Pins/Posts
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CEP 1153 CEP1153 102 1136 ND 1021136ND 102-1136
